78 dodge d150 cracked frame at the steering box

Rude Robert

Active Member
Joined
Mar 10, 2021
Messages
49
Reaction score
16
Location
S. California

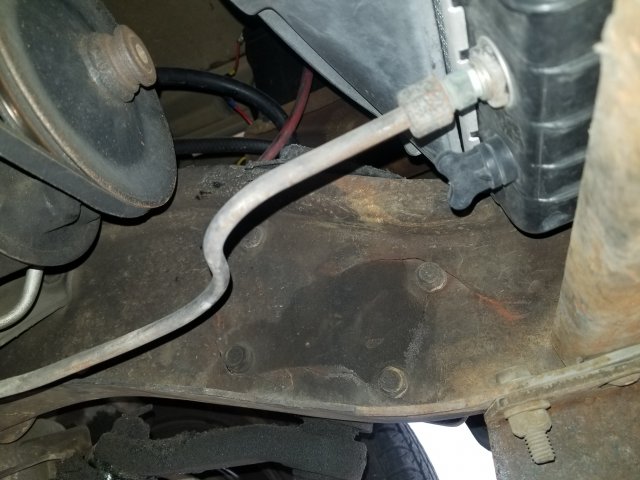

Hi I found this over the weekend while doing a tune up. Any suggestions on how to fix this, thank you for your suggestions



volaredon

Well-Known Member
Joined
Apr 25, 2020
Messages
181
Reaction score
82
Location
Illinois
Weld in a backup plate on the outside of the frame big enough to go past all of the mount holes and then redrill the mount holes
Then still a small hole right at each end of the crack and weld up the crack, grind down flush so there is no interference mounting the gearbox back in place


Rude Robert

Active Member
Joined
Mar 10, 2021
Messages
49
Reaction score
16
Location
S. California

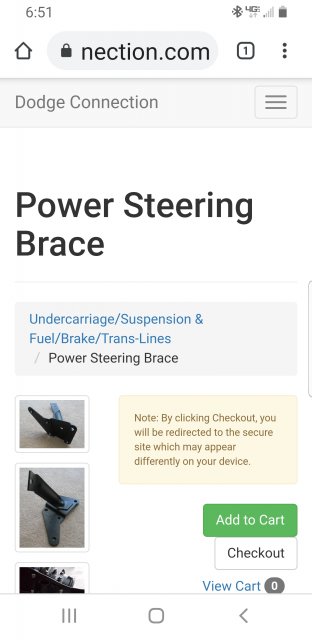

I have a welder, I have never removed a steering box before do I have to totally remove it from the truck it's in the fender well at the front left tire. I found this part and bought it last night hoping that I can use this somehow.


Attachments

  • Screenshot_20210310-065141_Chrome.jpg
    26.6 KB · Views: 38

volaredon

Well-Known Member
Joined
Apr 25, 2020
Messages
181
Reaction score
82
Location
Illinois
In the picture it looks like the gearbox is out of the truck.
Yes you must plate it farther than the size of the gearbox, and redrill the mounting holes. Just because you have a welder, are you sure of your abilities? Sorry had to ask.
The brace is a good idea but the cracks still need welded and reinforced.


richard d woolsey

Active Member
Joined
Dec 1, 2019
Messages
55
Reaction score
15
Location
illinois
you can go through all the stuff volaredon said or you can weld it up and get the part mother mopar sold to fix it. i believe sweptline makes it and it is about 120.00 i think. i have a few. spares. i can go out and take a few pics of and post them here if you would like me to.


65 sporty

Well-Known Member
Joined
Aug 8, 2015
Messages
2,418
Reaction score
1,832
Location
Kingston, Mi
The Dodge connection part looks good, but I would remove the box, weld the crack and weld a plate to the frame just like @volaredon suggested. I can weld good and I am cheap. :)


Rude Robert

Active Member
Joined
Mar 10, 2021
Messages
49
Reaction score
16
Location
S. California
Well thanks for the offer in in s.calI. I was planning to weld the cracks too. I was thinking about, in addition to that part that I posted if I could weld a plate between the frame and steering box too. Not sure if this would change the way that the truck steers or not? I have a Lincoln 220 welder and I like flux core. I am wondering if I can leave the steering box on the pitman arm and slide it away from the frame enough to weld and grind, or do I just remove it entirely thanks


7mopar

Well-Known Member
Joined
Dec 21, 2013
Messages
2,762
Reaction score
2,337
Location
Kingsville, MO
I would remove the box from the frame at least. The frame will not care which side you weld the crack from. Do it on the side easiest accesed. Just follow the instructions above and make sure you have good penetration.


volaredon

Well-Known Member
Joined
Apr 25, 2020
Messages
181
Reaction score
82
Location
Illinois
Put the plate on the opposite side of the frame rail to where the gearbox mounts. Then the steering linkage will be in the same place as original. I'm not real crazy about flux core wire for a job like this.


Rude Robert

Active Member
Joined
Mar 10, 2021
Messages
49
Reaction score
16
Location
S. California
I just got home from work and its raining so I went into the fender well and sprayed liquid wrench on what i could reach as far as the nuts for the steering box and i don't see any. I see the threads and i asked someone else to see what they think about the steering box is tapped and self threaded. He said no that there were nuts. Well I didn't see any and still don't lol. Could these steering box have been threaded?


richard d woolsey

Active Member
Joined
Dec 1, 2019
Messages
55
Reaction score
15
Location
illinois
THEY ARE NOT NUTS. the bolts are threaded into the gear box. if you use that plate you will need longer bolts also. then 1 bolt nut, lock washer under the core support. look on you tube for frame crack repair to see if there is a video on it.run that guy out of your garage, he is going to cost you money.


Rude Robert

Active Member
Joined
Mar 10, 2021
Messages
49
Reaction score
16
Location
S. California
Lol it wasn't a shop just a guy I know about 75 yrs old. Okay I thought I was crazy lol. That steering brace I bought should be the same size as the pump I hope


richard d woolsey

Active Member
Joined
Dec 1, 2019
Messages
55
Reaction score
15
Location
illinois
i just looked for a you tube video or anything with pictures that would help you. there are not any. when you take the bolts out of the gearbox, support the box, weld the crack up and then grind it down some. what ever the thickness of the plate you got, add that thickness to the length of the bolts. if you have to, you can go a little longer on bolts but no shorter. then bolt plate to inside of frame and install bolts snuggly. then you will have to drill hole for front arm to bolt to under core support area. hope this helps.


Rude Robert

Active Member
Joined
Mar 10, 2021
Messages
49
Reaction score
16
Location
S. California
I have to undo the steering coupler too I assume? I will be be working on this tomorrow. I concerned about the shaft falling off now lol
