1968 Dodge A100 pickup - tribute to the 'Little Red Wagon" - pic heavy

Discussion in 'Member Restorations' started by kiwigtx, Aug 22, 2018.

  1. kiwigtx

    kiwigtxInternational Mod Staff Member

    Messages:
    506
    Likes Received:
    408
    Joined:
    Jun 16, 2011
    Location:
    Auckland
    Hey guys,
    It's been eight and a half years since I bought the A100, so I thought it about time to start a build thread. Obviously a chunk of this will be retrospective....but that means you won't have too wait long for updates. :D
    Going to be mostly pictures ...but feel free to ask any questions along the way. I'll do my best to answer all as fast as I can.
    Thanks,
    Roger

    • Like Like x 3
    • kiwigtx

      kiwigtxInternational Mod Staff Member

      Messages:
      506
      Likes Received:
      408
      Joined:
      Jun 16, 2011
      Location:
      Auckland
      Text Stolen from "my garage".....

      I bought this truck out of Arkansas in March 2009, from a local Online Trader site (Auto Trader Classics). After making a $10 deposit on PayPal, I sent an Internet buddy from near Houston to drive across and check it out for me, as it was not possible for me to view the truck myself. The truck was seen, a deal was made and money handed over. Transported across country to Long Beach, California, the truck was then loaded into a container bound for New Zealand.

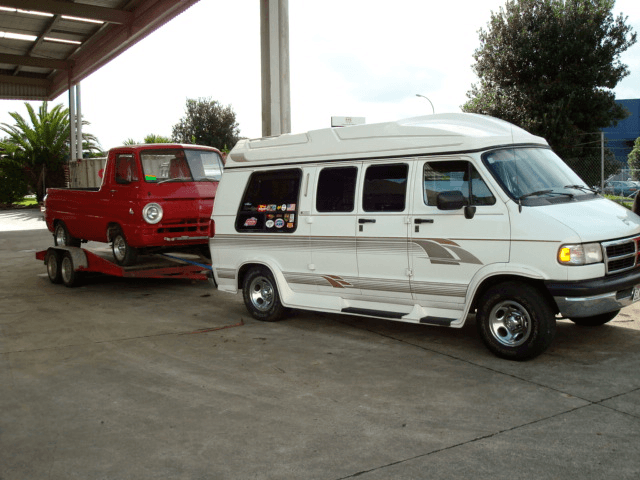

      Unbeknown to me, it travelled in the same container as a '78 Dodge Ram Pickup, bought by another Kiwi guy, who I didn't know at the time. This guy has turned into my best friend, and also my Number One guy for all things mechanical. Cliff "MowPar" and I have been working on vehicles together now ever since, and it was he who provided the expertise in reviving this older engine transplant and bringing the A100 to life.


      Cliff and I are currently donkey-deep into a revamp of the existing combination....but you'll have to wait just a little longer for those updates (can you say tease?) :nailbiting:

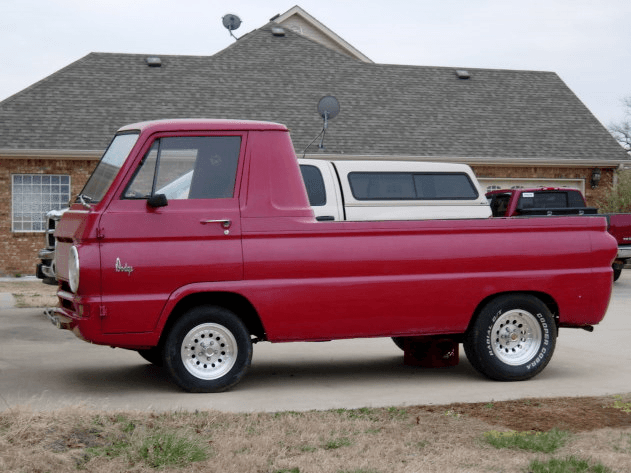

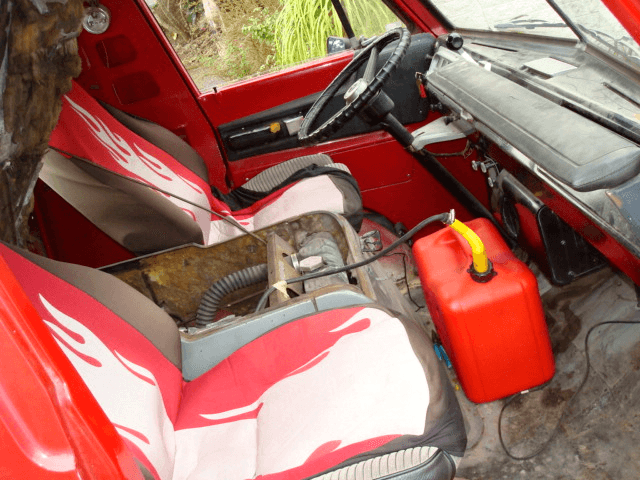

      Condition when bought - as advertised in Arkansas....

      The inspiration...

      The tee shirt...

      The toys...

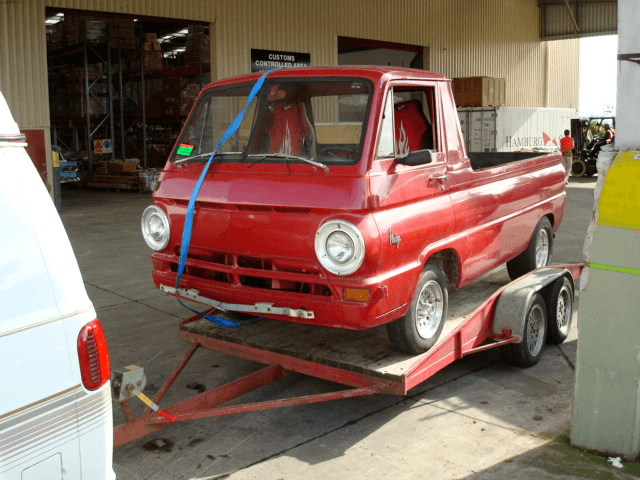

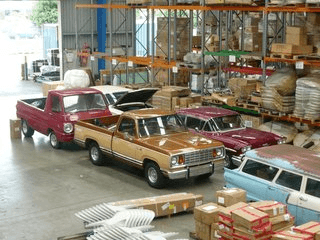

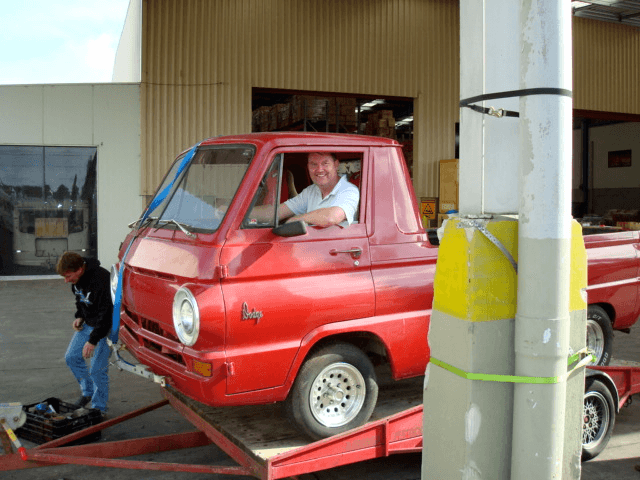

      Collection day from the Customs bonded area...

      Behind the wheel at last....

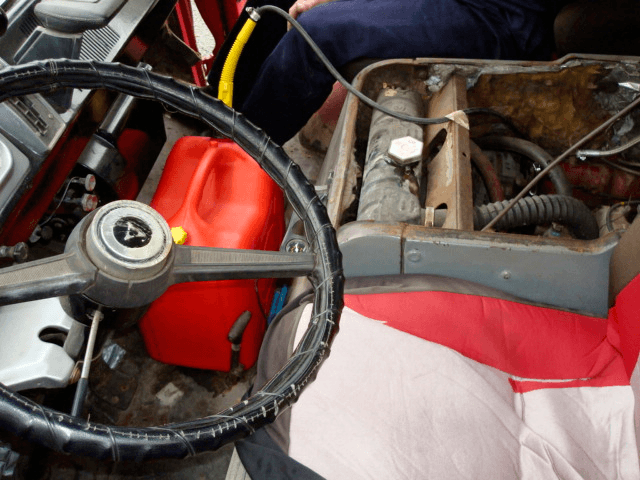

      OK, let's get it started up...


      • Like Like x 7
      • kiwigtx

        kiwigtxInternational Mod Staff Member

        Messages:
        506
        Likes Received:
        408
        Joined:
        Jun 16, 2011
        Location:
        Auckland
        First drive around the block...


        :wacky:

        • Like Like x 4
        • kiwigtx

          kiwigtxInternational Mod Staff Member

          Messages:
          506
          Likes Received:
          408
          Joined:
          Jun 16, 2011
          Location:
          Auckland

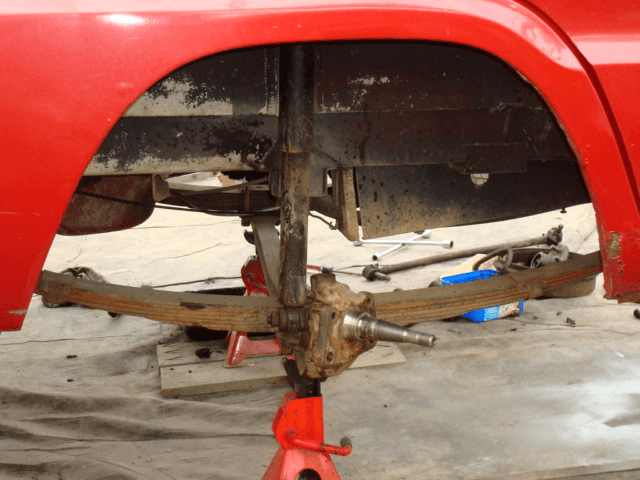

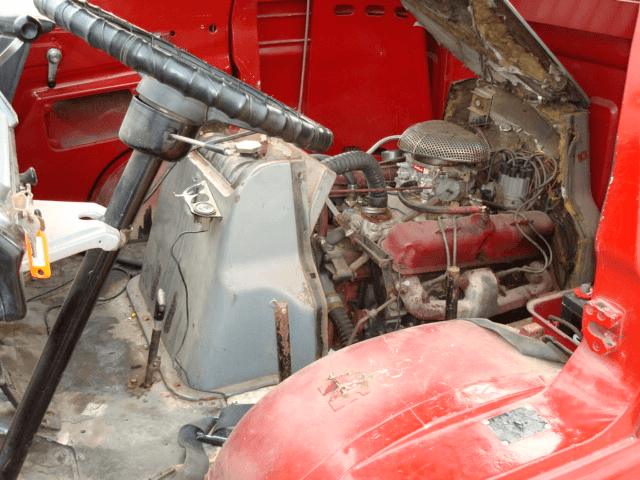

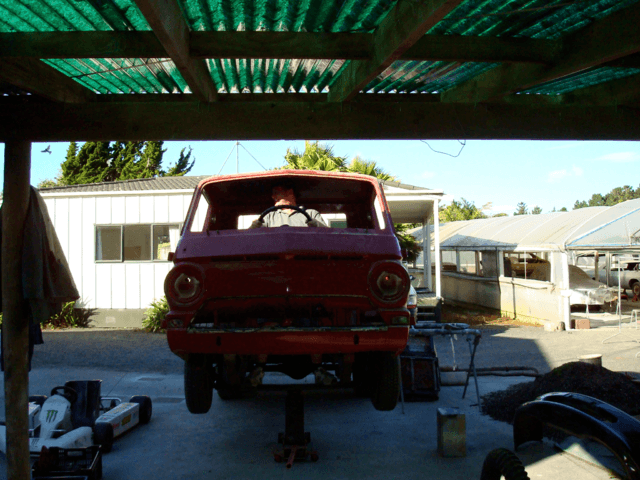

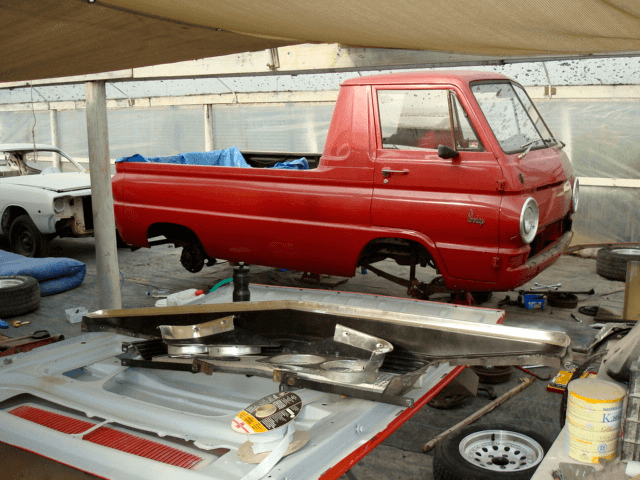

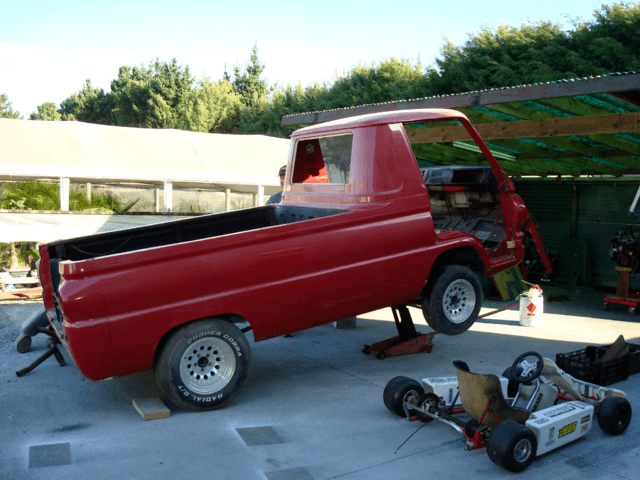

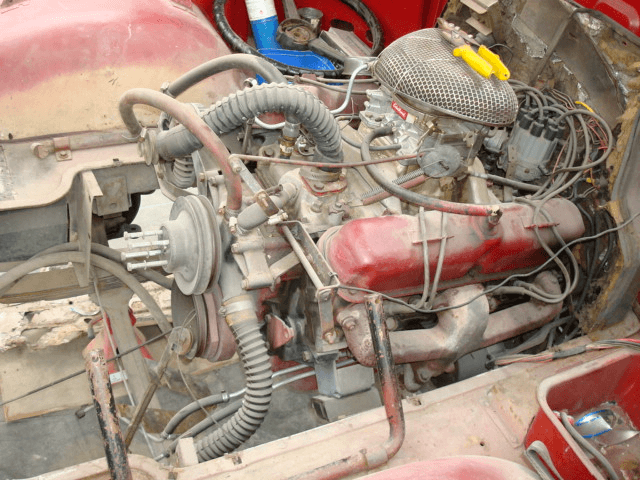

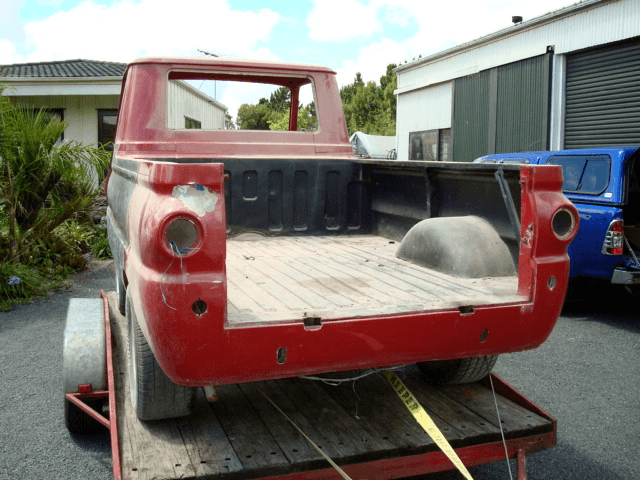

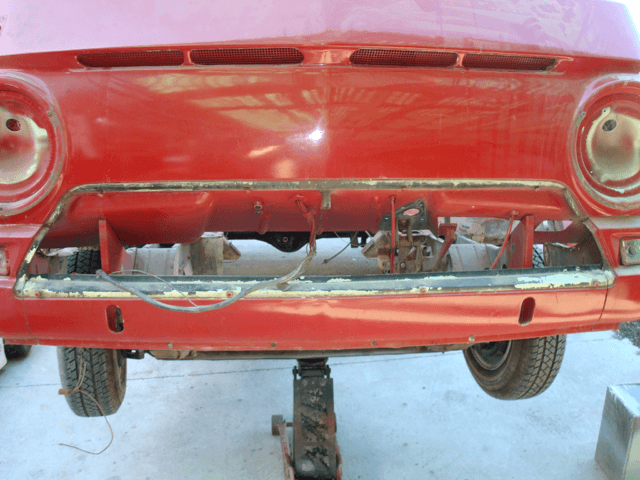

          Starting the tear down under cover...

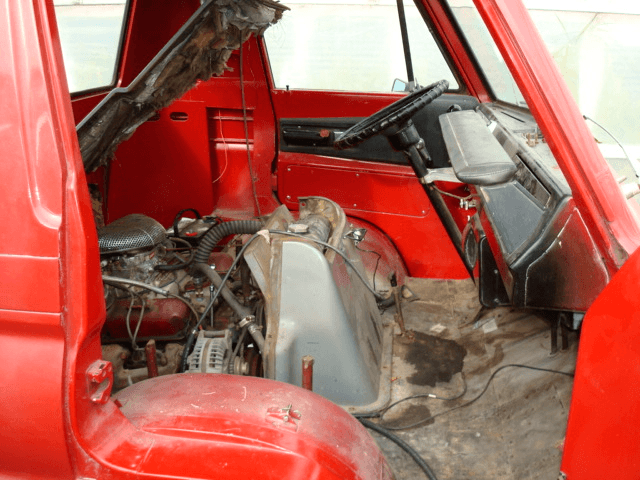

          Lots of parts that were quite different to the norm started appearing. Had to source a replacement steering link - came from Jegs.

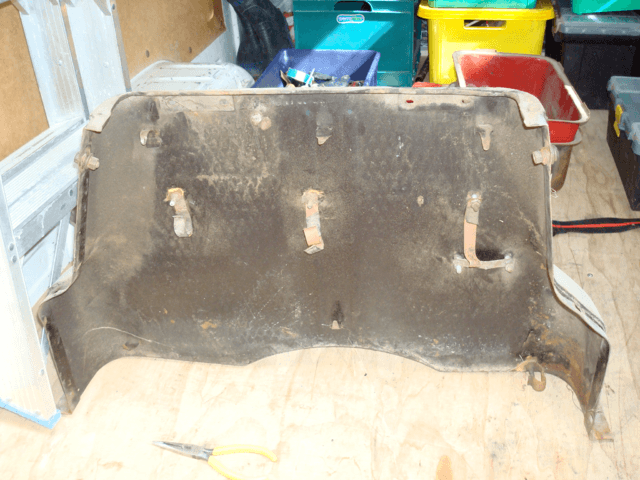

          Dismantling the 'doghouse' ....all this was a new adventure, and we learned fast how this truck was assembled....



          • Like Like x 3
          • kiwigtx

            kiwigtxInternational Mod Staff Member

            Messages:
            506
            Likes Received:
            408
            Joined:
            Jun 16, 2011
            Location:
            Auckland

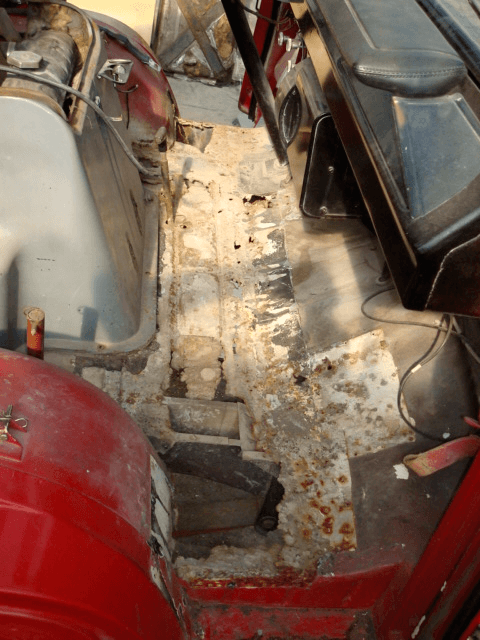

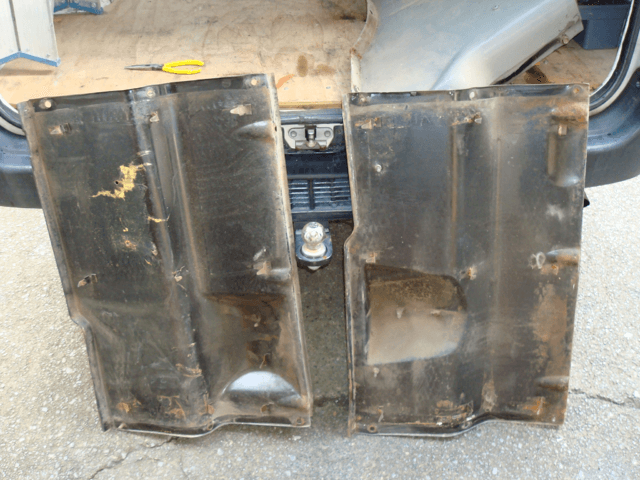

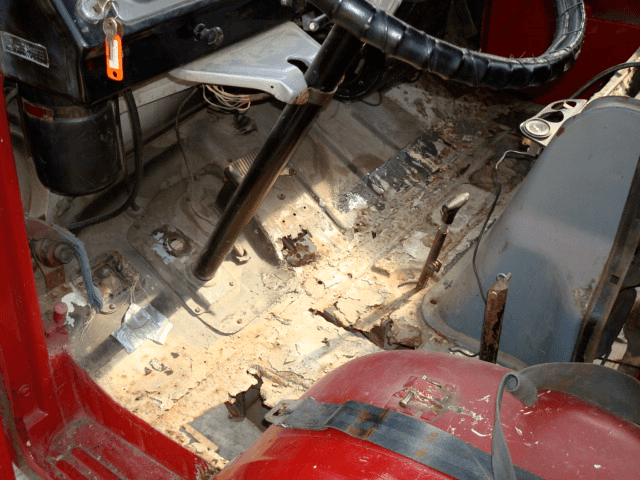

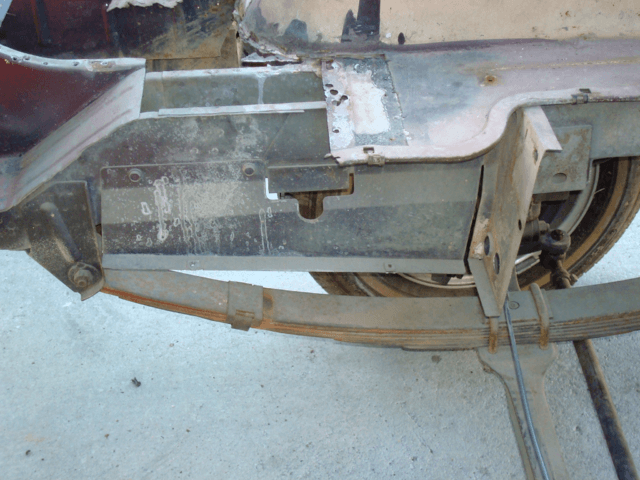

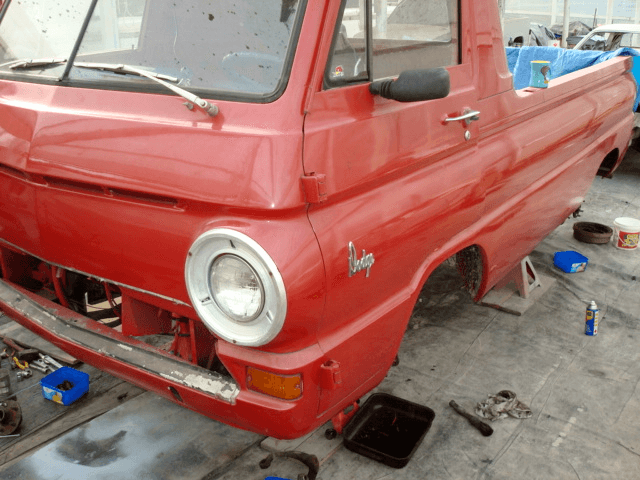

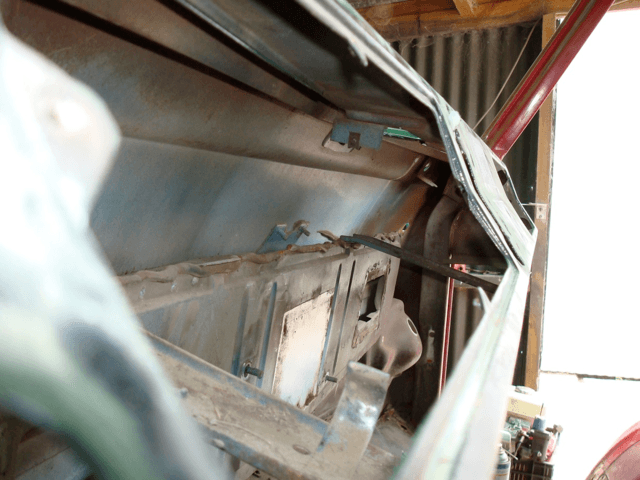

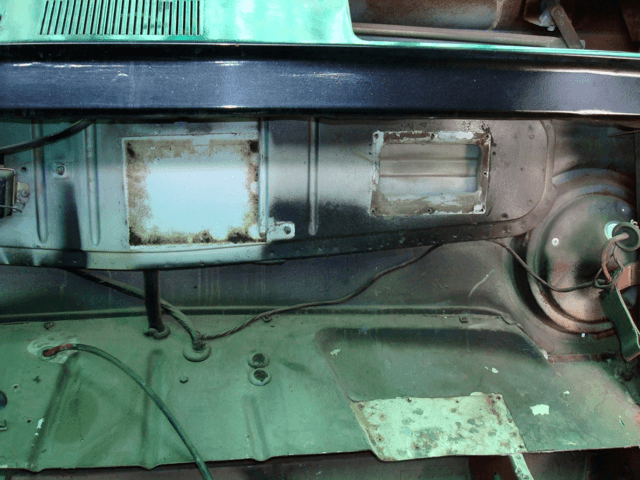

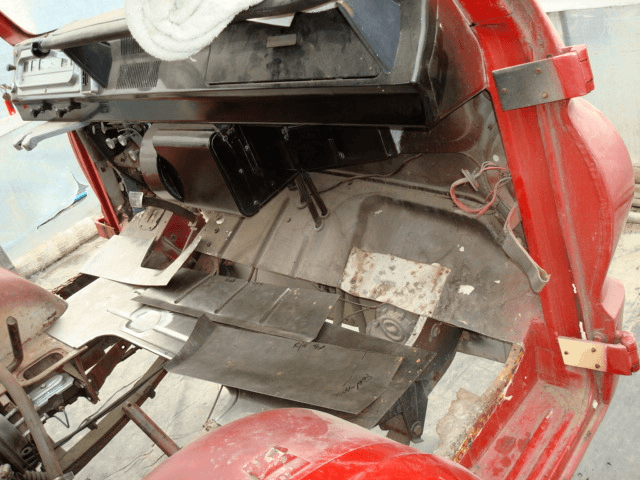

            A bit nasty on the floor ....called our panelbeater in for a look at the damage...







            • Like Like x 3
            • kiwigtx

              kiwigtxInternational Mod Staff Member

              Messages:
              506
              Likes Received:
              408
              Joined:
              Jun 16, 2011
              Location:
              Auckland

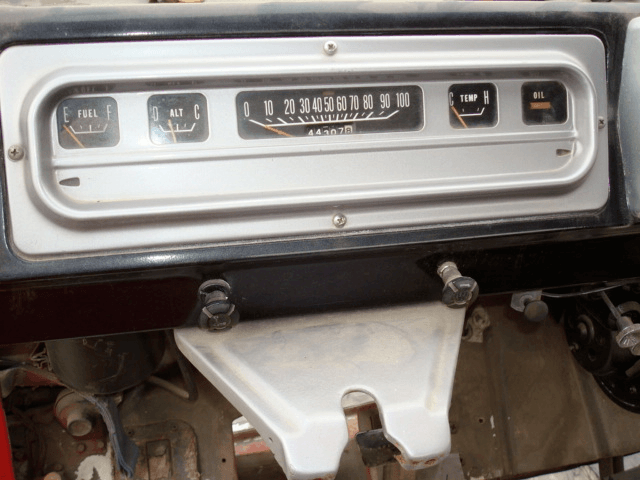

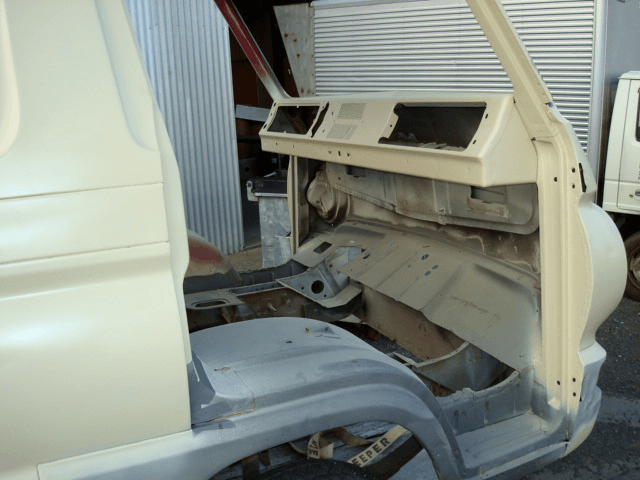

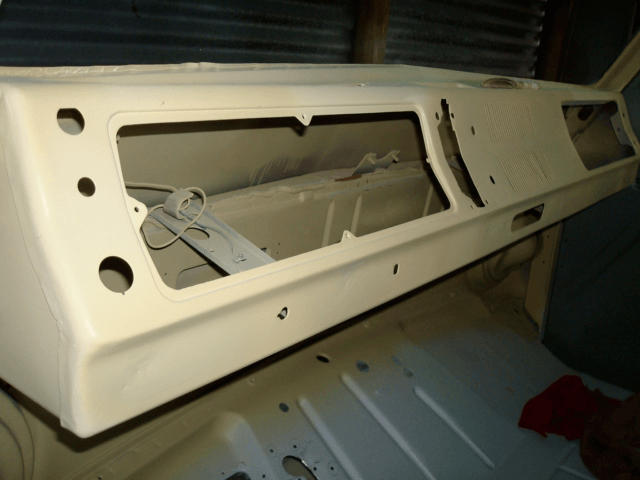

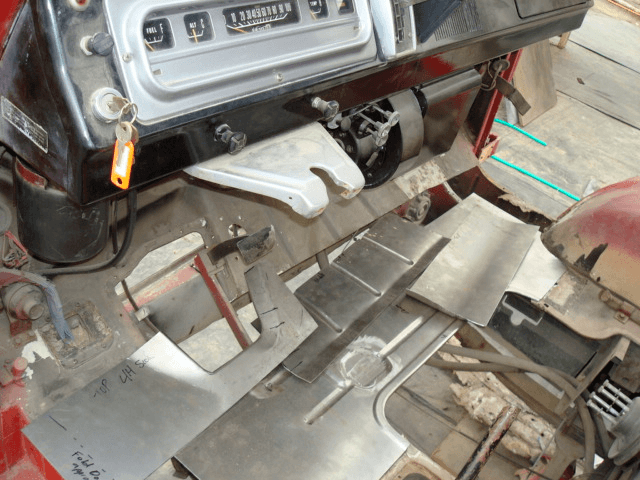

              Dash was really quite tidy....just the wrong colour...

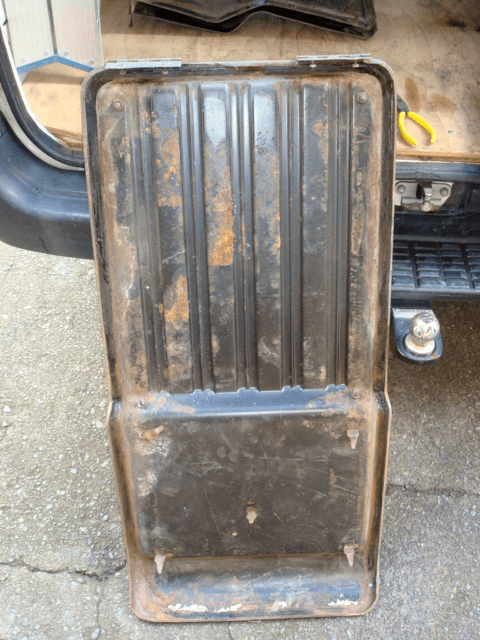

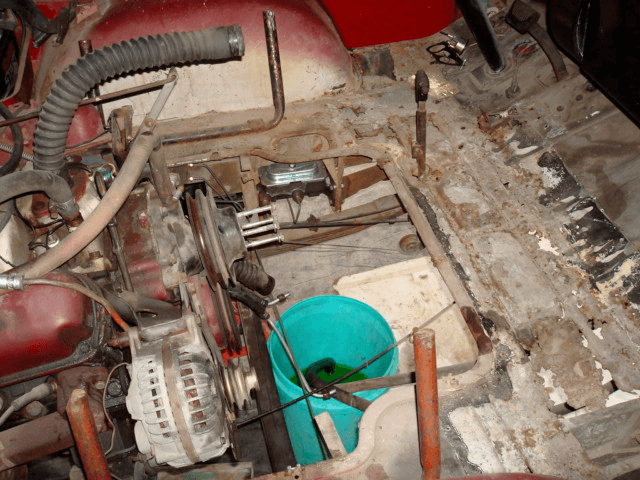

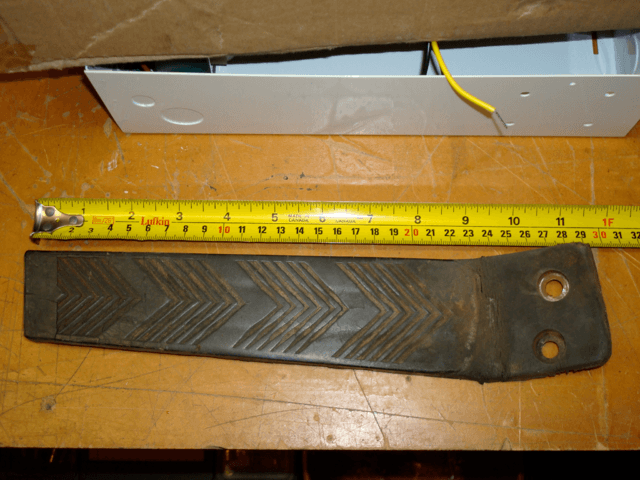

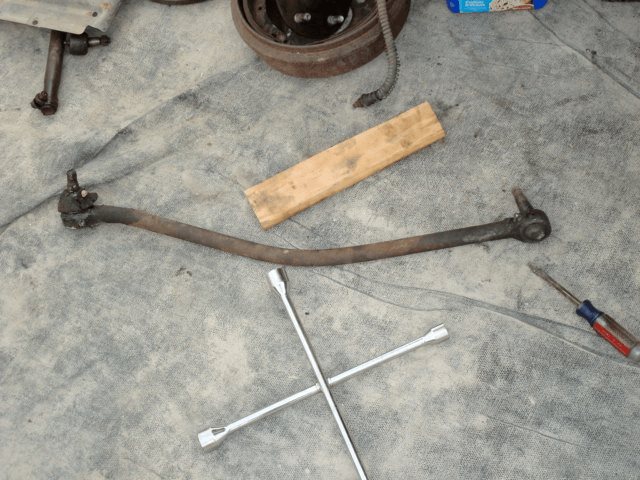

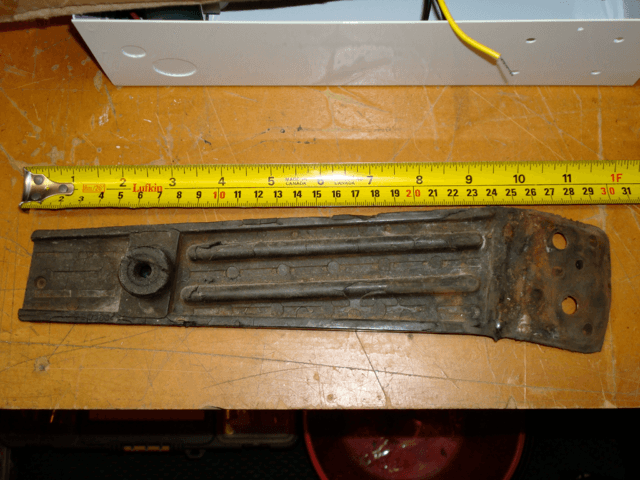

              Gas pedal was shot to bits...and is a really crazy setup with rods and levers to operate the throttle....went to Lokar for a cable system...


              Doghouse panels were all in really good condition...so I cleaned off the hideous insulation, and took everything to be dip-stripped. much easier and a cleaner finish...




              • Like Like x 2
              • kiwigtx

                kiwigtxInternational Mod Staff Member

                Messages:
                506
                Likes Received:
                408
                Joined:
                Jun 16, 2011
                Location:
                Auckland
                Getting a bit of practice in here....

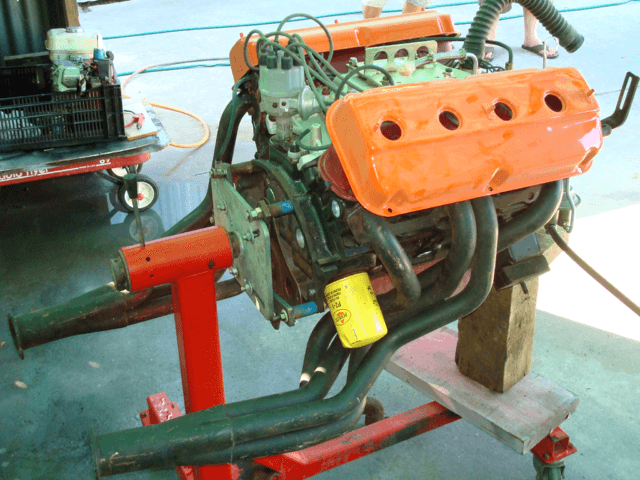

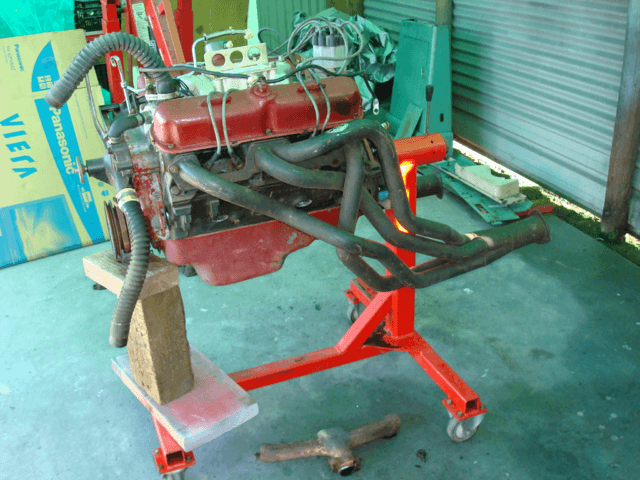

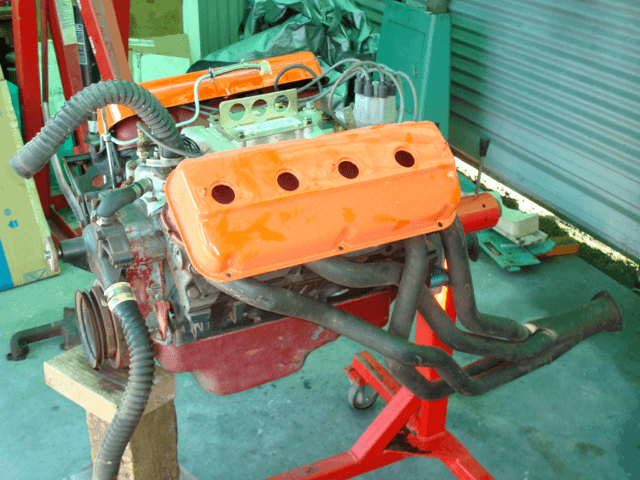

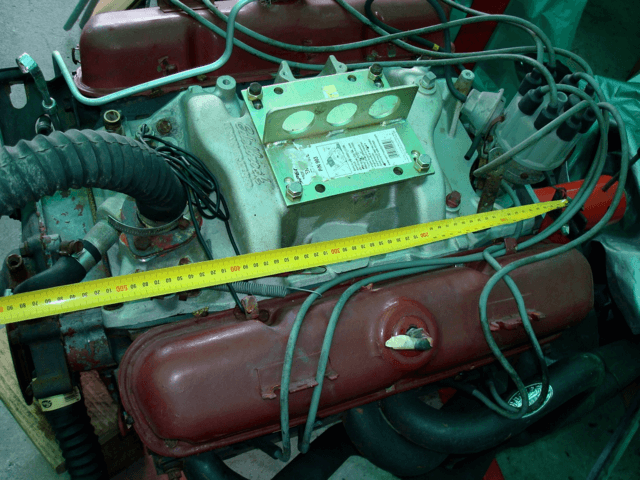

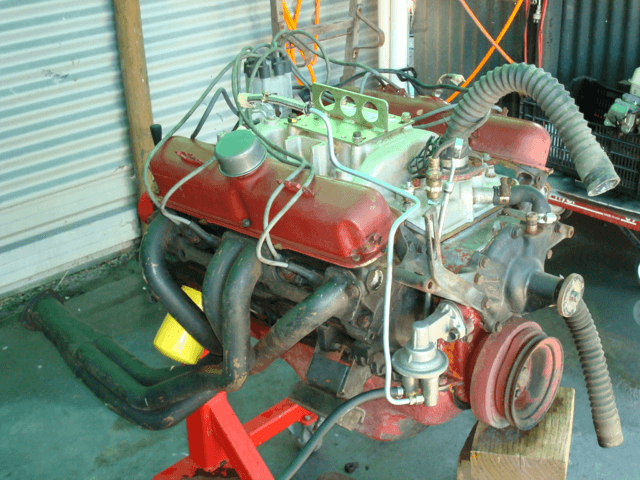

                Picked up a set of new headers locally...Hooker Super Competition...

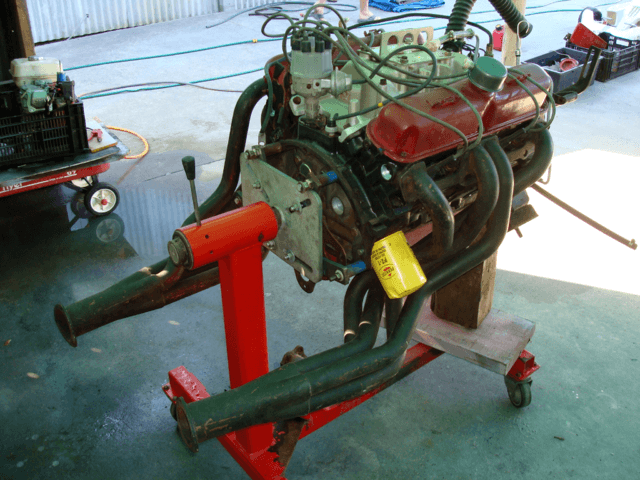

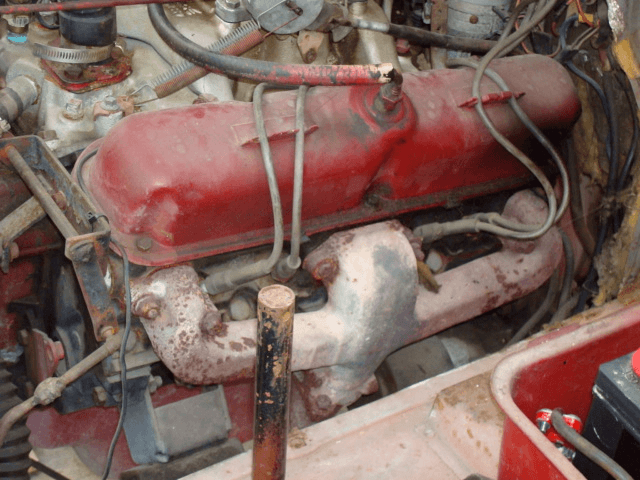

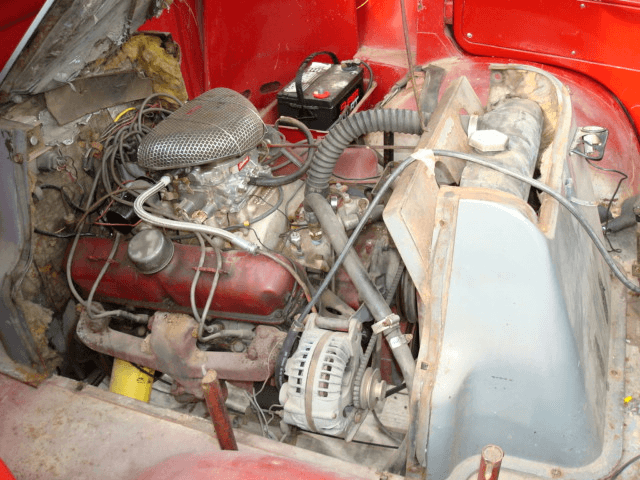

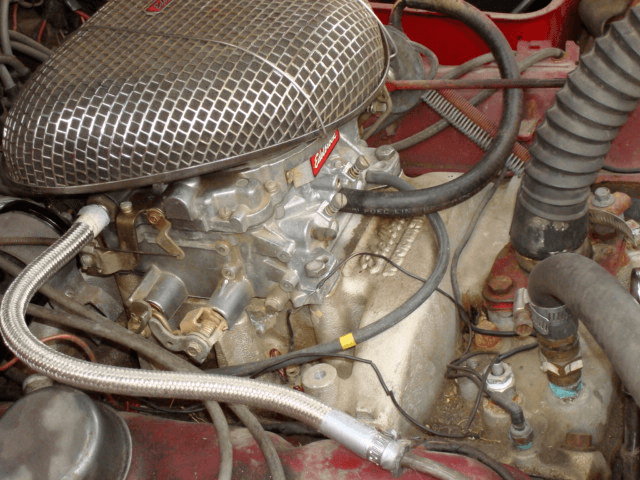

                A very ugly looking but hardly used engine...



                Wishful thinking here...

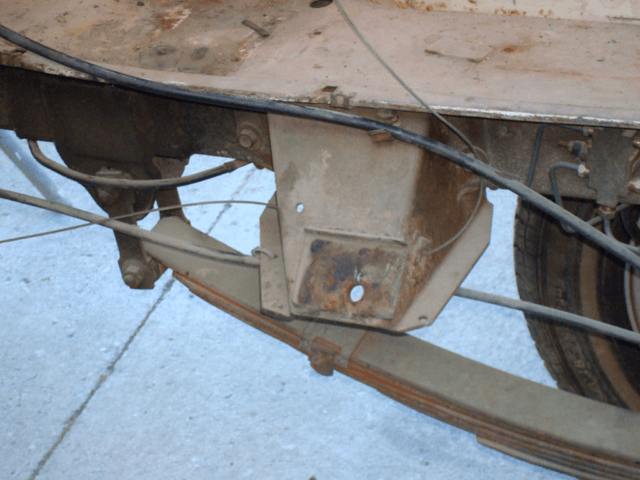

                Really quite clean underneath the truck - no chassis rust at all....just a lot of dust and underseal to scrape off....


                • Like Like x 5
                • kiwigtx

                  kiwigtxInternational Mod Staff Member

                  Messages:
                  506
                  Likes Received:
                  408
                  Joined:
                  Jun 16, 2011
                  Location:
                  Auckland

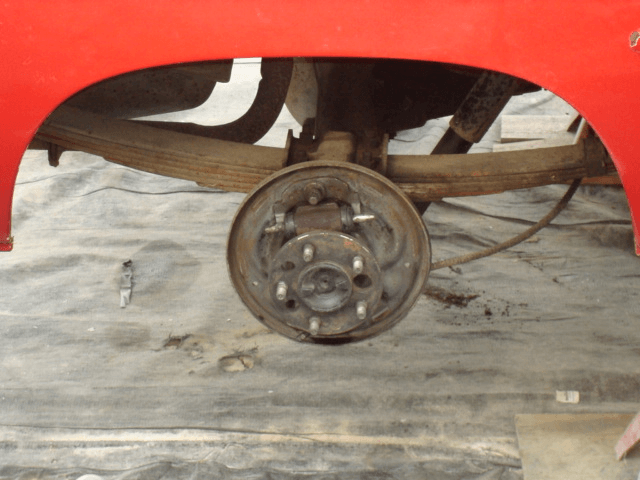

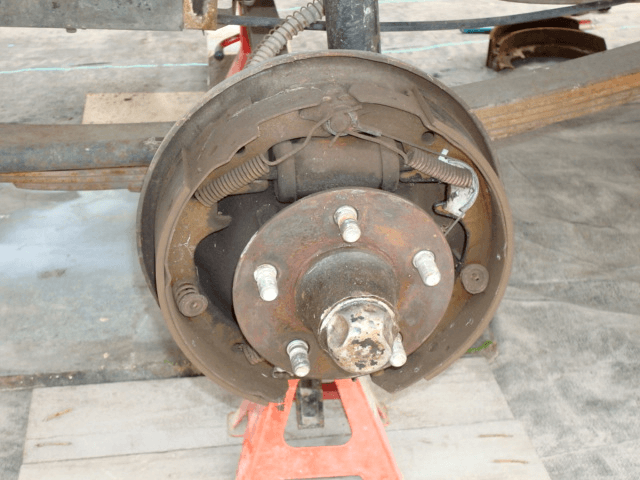

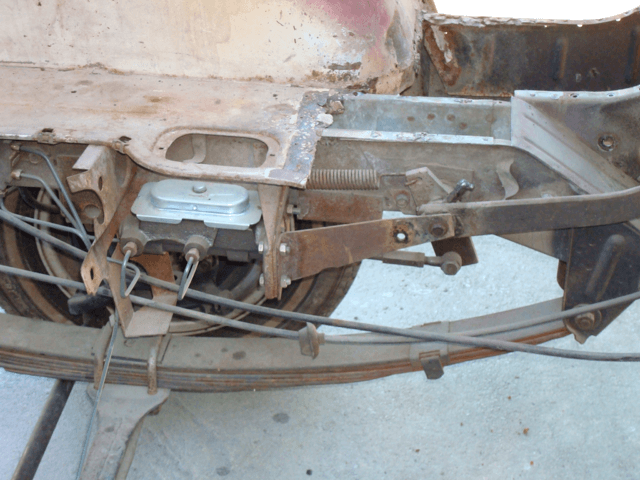

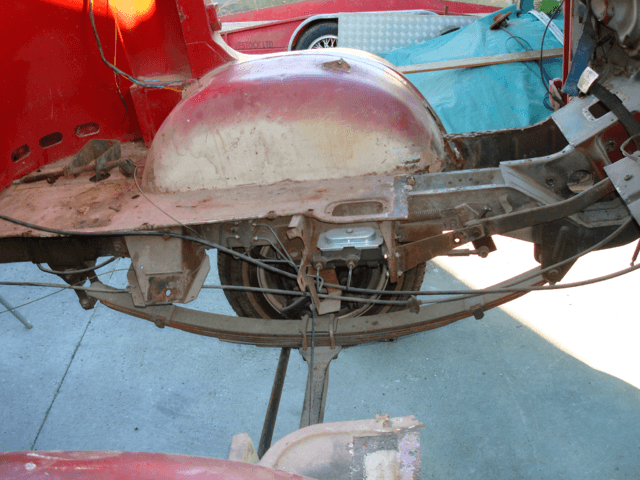

                  New brake master cylinder fitted up with new lines...all the old lines were corroded inside and dry from lack of use...




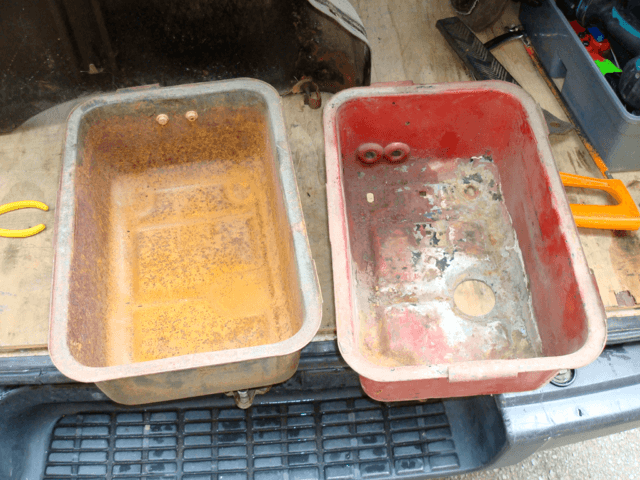

                  Lots of parts to clean here...


                  • Like Like x 3
                  • 65 sporty

                    65 sportyWell-Known Member

                    Messages:
                    1,472
                    Likes Received:
                    750
                    Joined:
                    Aug 8, 2015
                    Location:
                    Marlette, Mi
                    Great thread, I will be watching

                    • Like Like x 1
                    • Agree Agree x 1
                    • LocuMob

                      LocuMobFluid Technician

                      Messages:
                      3,306
                      Likes Received:
                      1,842
                      Joined:
                      Mar 20, 2015
                      Location:
                      Blue Earth, Mn
                      Nice to see the backstory on the truck.

                      • Like Like x 1
                      • Agree Agree x 1
                      • kiwigtx

                        kiwigtxInternational Mod Staff Member

                        Messages:
                        506
                        Likes Received:
                        408
                        Joined:
                        Jun 16, 2011
                        Location:
                        Auckland
                        Apparently the previous owner had plans to use the truck as part of his Water-blasting business enterprise....never happened. The tide mark in the tray reflected the fact that this A100 could have been a Fire Tender. :D

                        • Like Like x 2
                        • kiwigtx

                          kiwigtxInternational Mod Staff Member

                          Messages:
                          506
                          Likes Received:
                          408
                          Joined:
                          Jun 16, 2011
                          Location:
                          Auckland

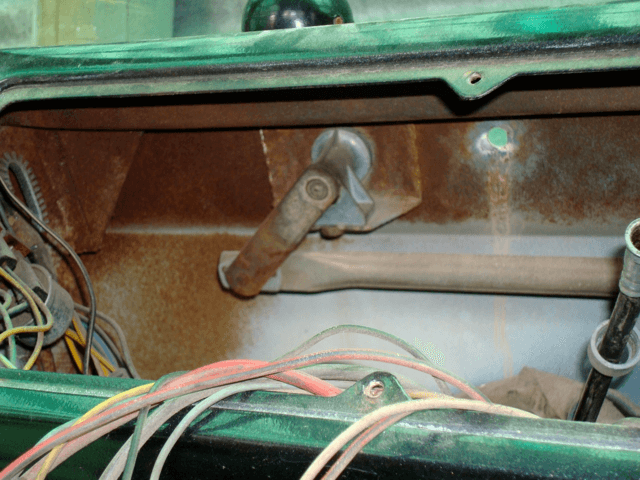

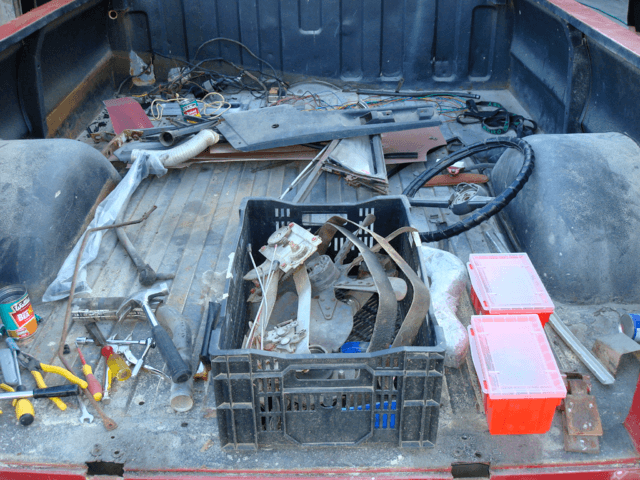

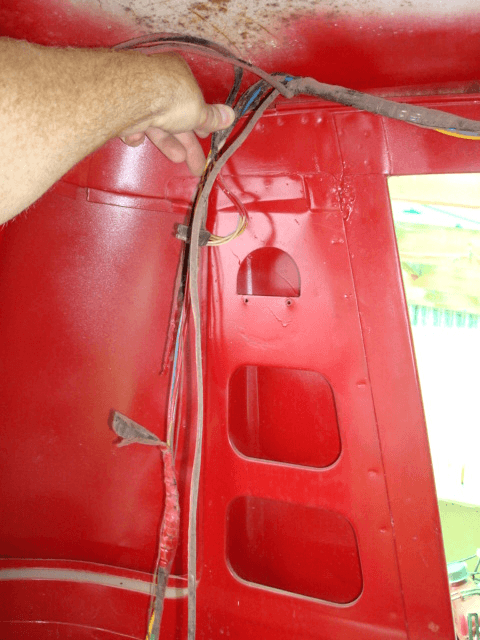

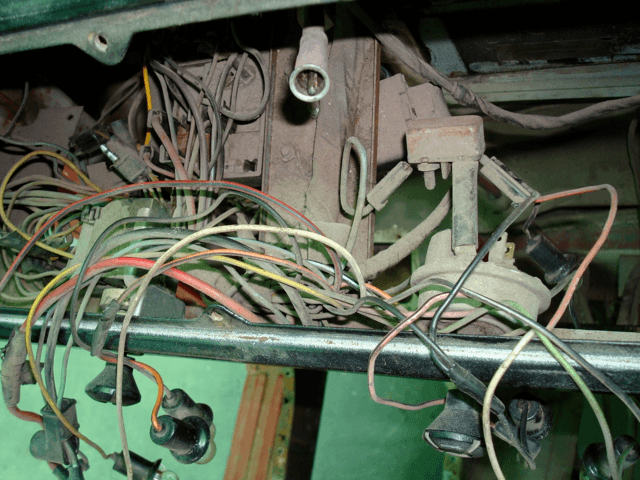

                          My big task apart from tearing stuff apart and cleaning etc was the wiring. I decided to rewire and start from scratch. I carefully pulled apart the existing looms and labelled as best I could, then removed carefully and laid the looms out on the floor to check over. I had a CD copy of the FSM, so the drawings were copied and enlarged for ease of reading.

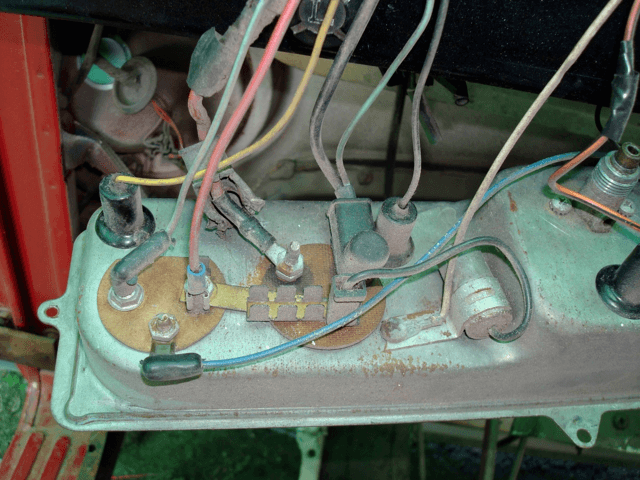

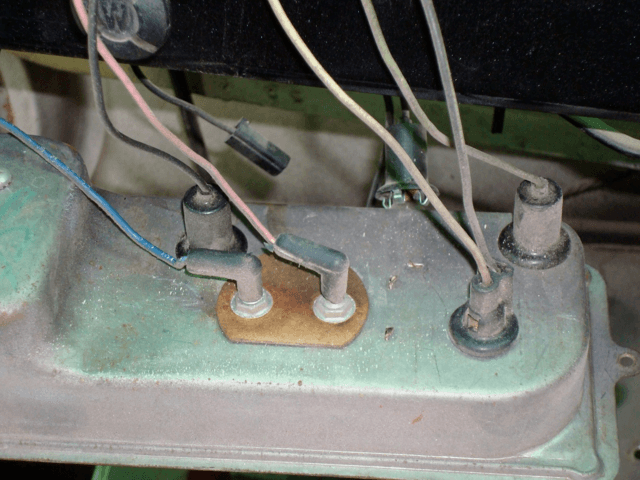

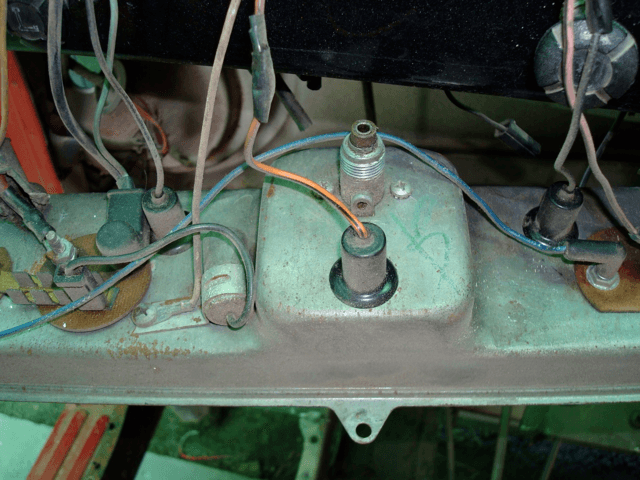

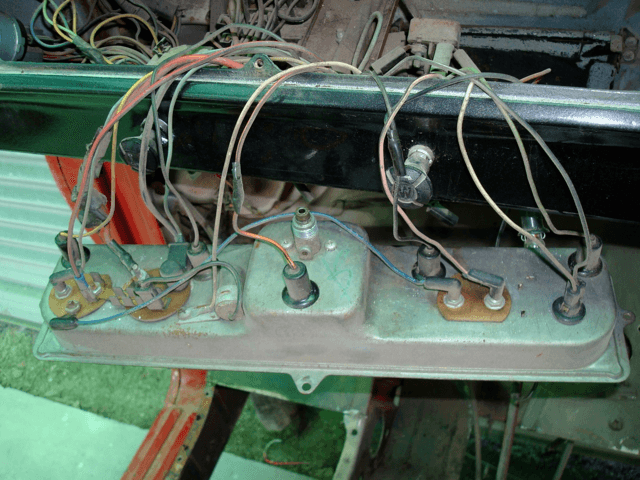

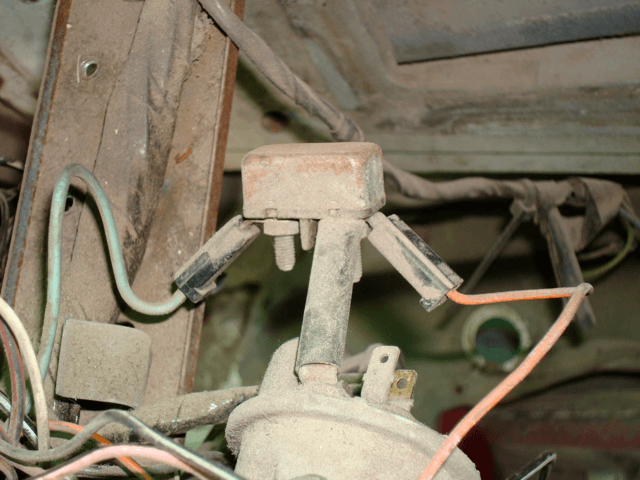

                          The wiring was relatively unmolested, but had been touched a little over the years.

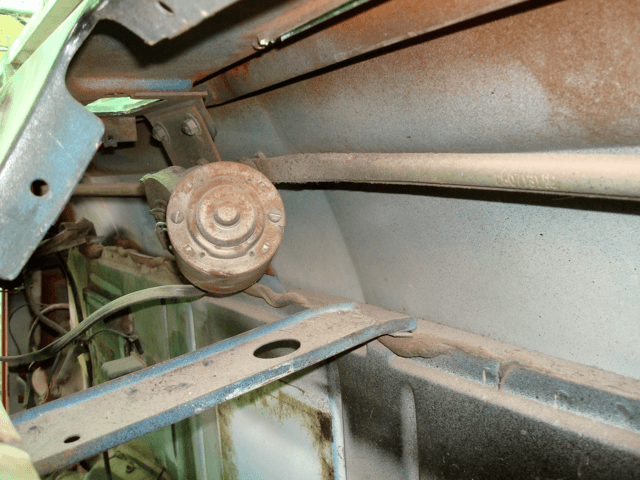

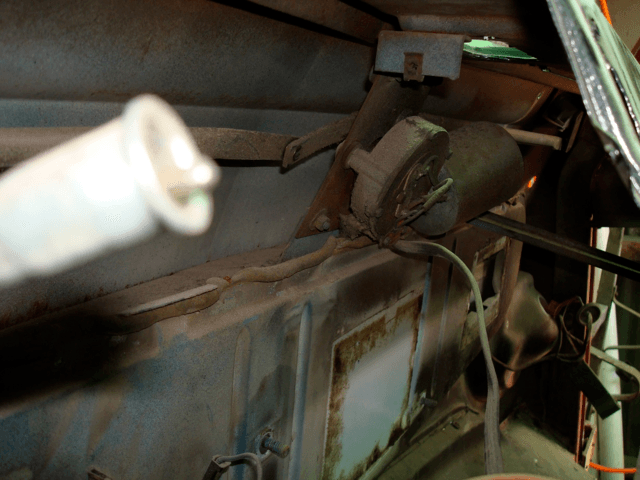

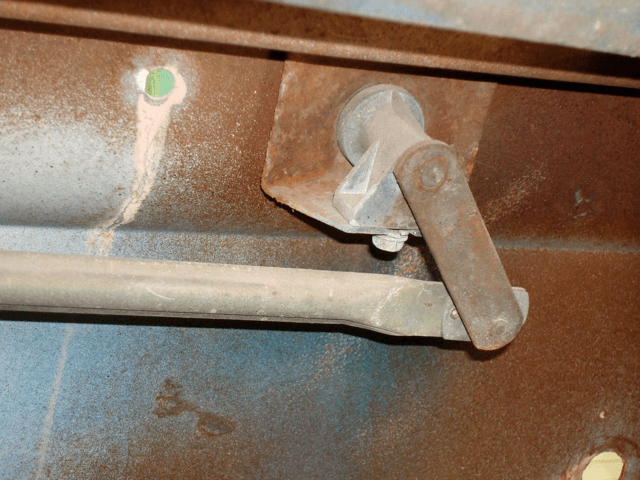

                          Wiper pivots got a clean and a grease etc along with new seals eventually...





                          • Like Like x 4
                          • kiwigtx

                            kiwigtxInternational Mod Staff Member

                            Messages:
                            506
                            Likes Received:
                            408
                            Joined:
                            Jun 16, 2011
                            Location:
                            Auckland

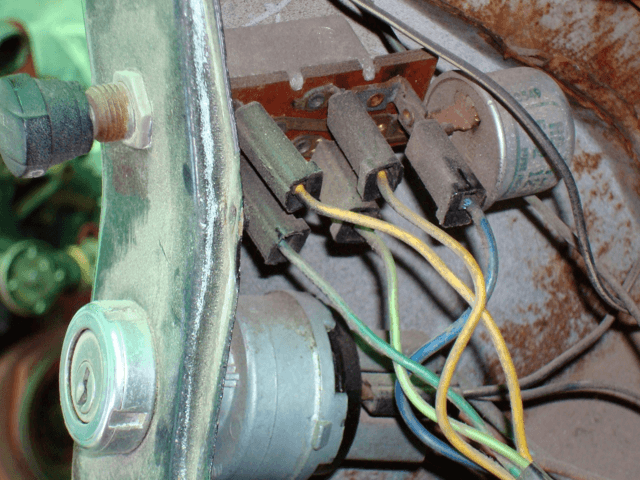

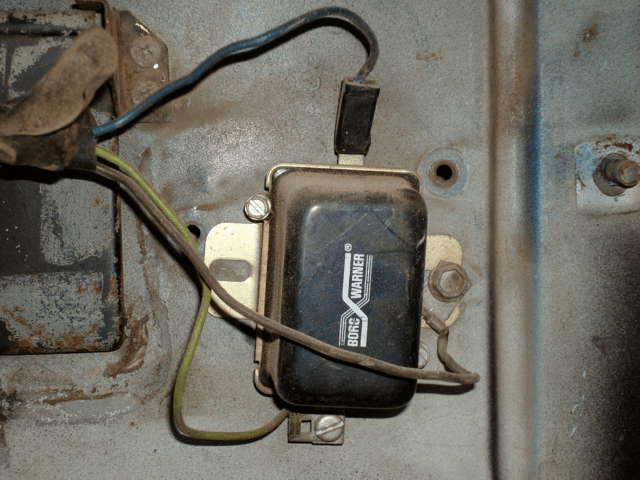

                            I managed to find a new Light switch - same as Dodge Dart etc....just swapped out the bezel.

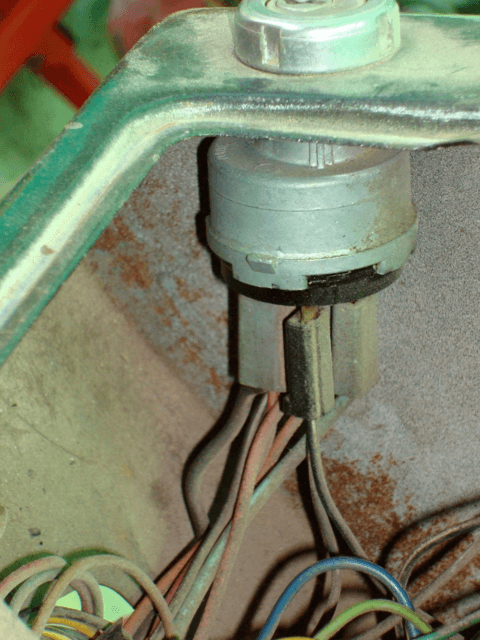

                            Ignition switch was in good condition.

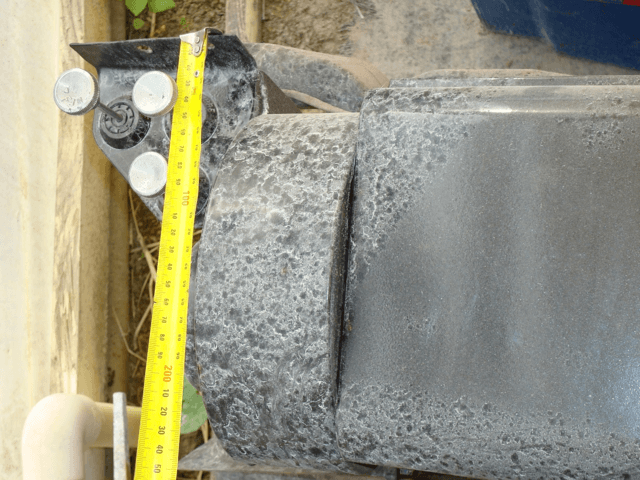

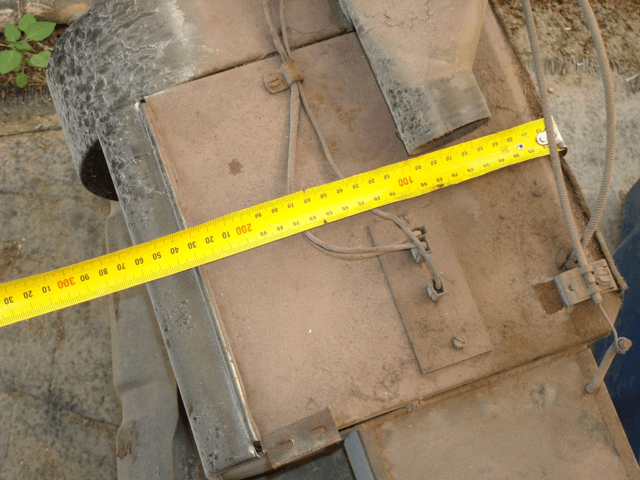

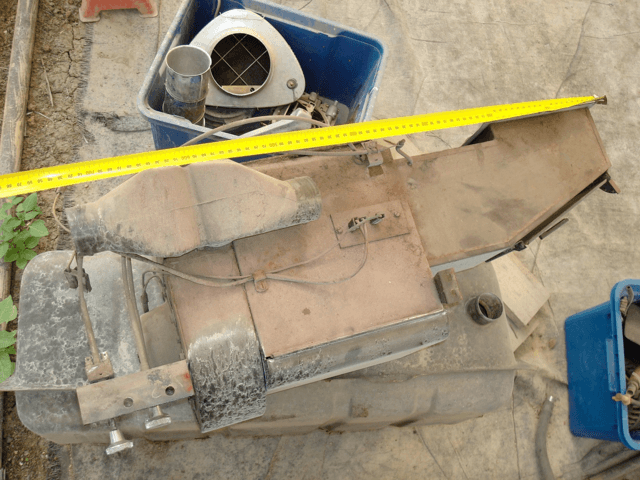

                            Measured the heater box for future A/C install - need to know how much room we have to play with...

                            • Like Like x 4
                            • kiwigtx

                              kiwigtxInternational Mod Staff Member

                              Messages:
                              506
                              Likes Received:
                              408
                              Joined:
                              Jun 16, 2011
                              Location:
                              Auckland

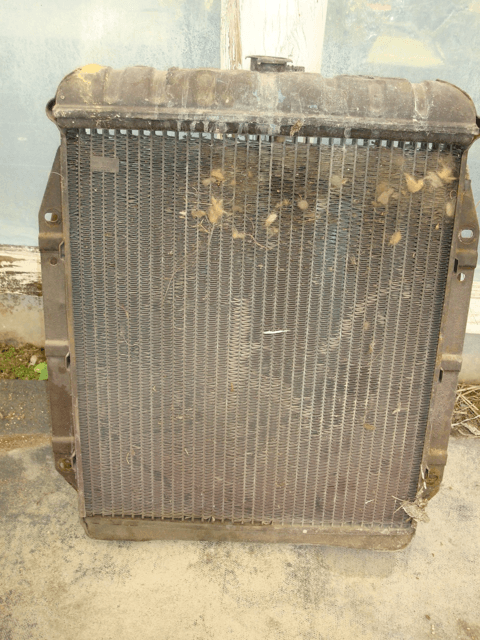

                              Radiator was checked and re-cored with minor alteration to outlet and inlet piping to suit the hoses.

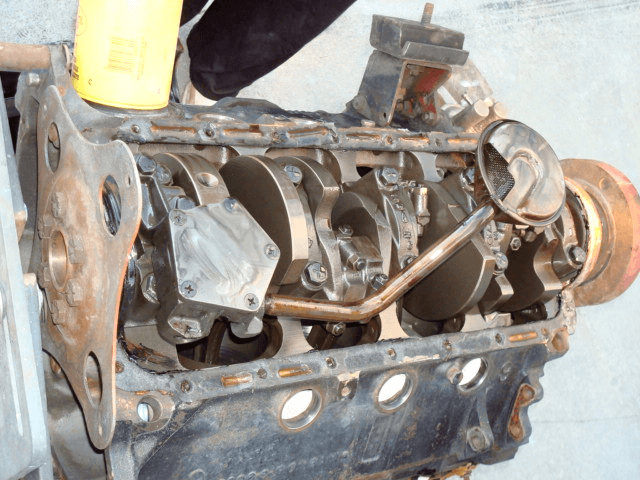

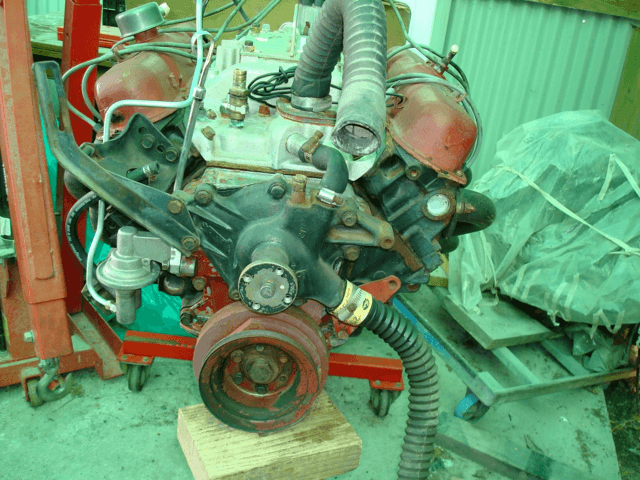

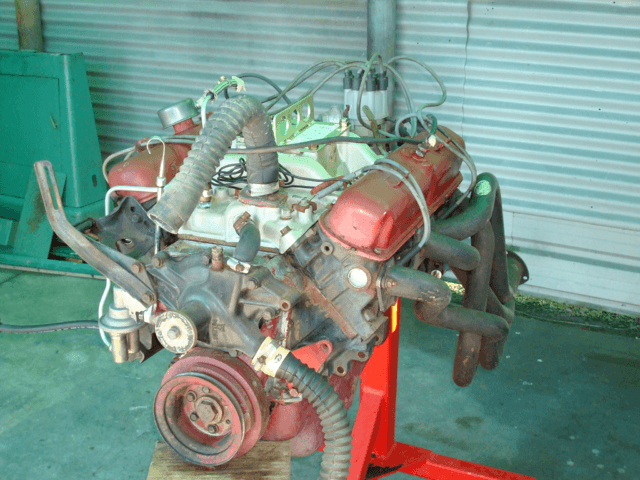

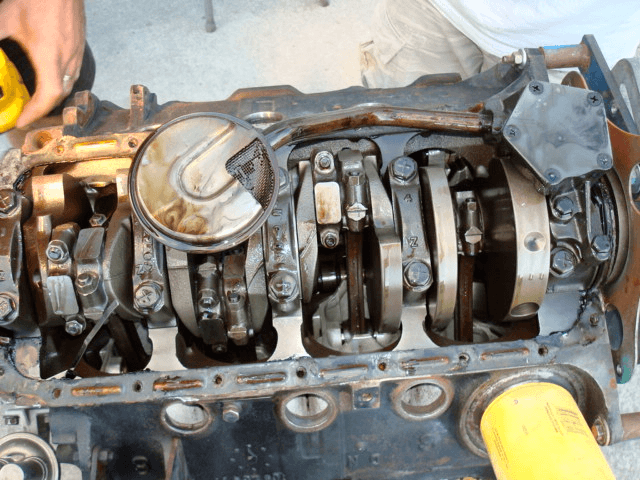

                              Engine was then stripped down for inspection....checked for leaks, and damaged gaskets etc...

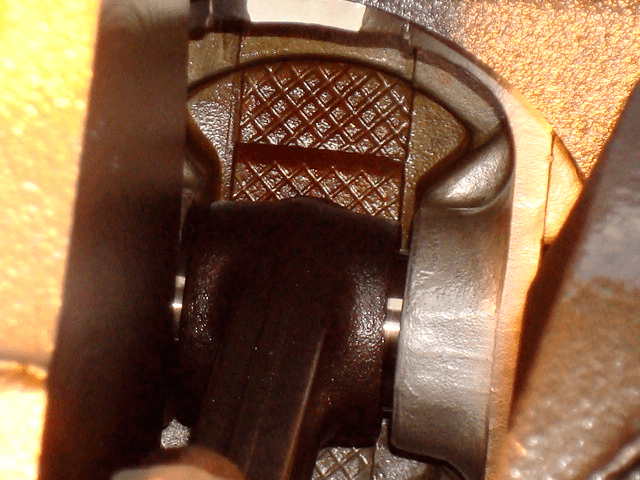

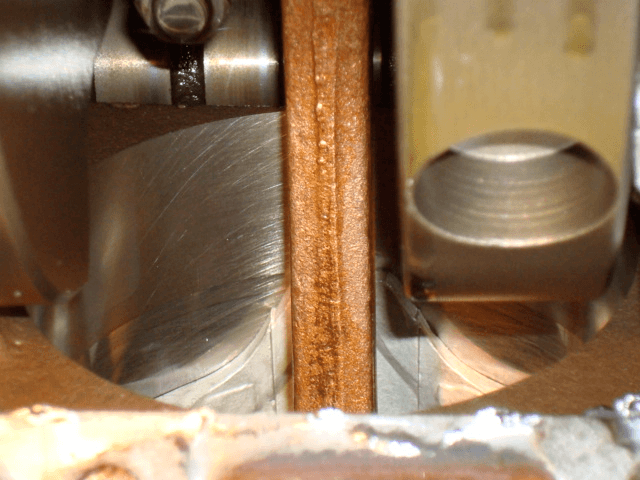

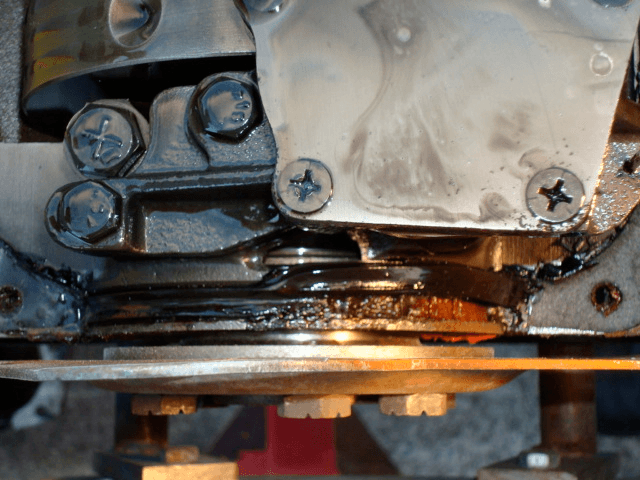

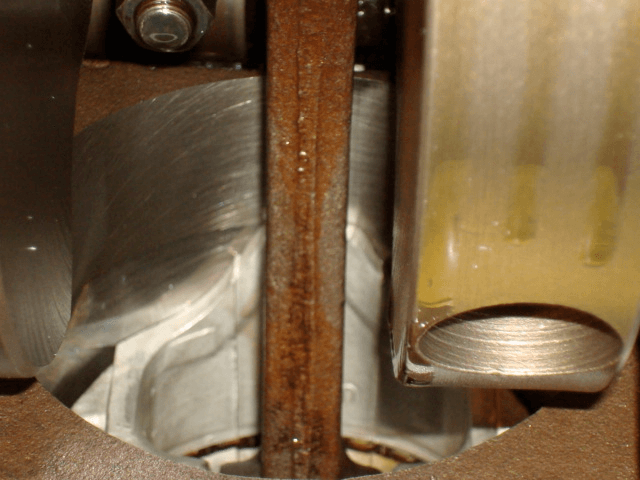

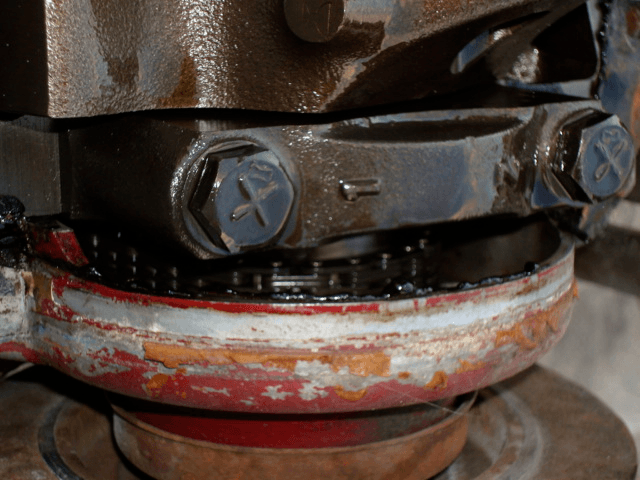

                              Found that someone had inserted the rear main seal incorrectly....causing a leak.....





                              • Like Like x 4
                              • kiwigtx

                                kiwigtxInternational Mod Staff Member

                                Messages:
                                506
                                Likes Received:
                                408
                                Joined:
                                Jun 16, 2011
                                Location:
                                Auckland

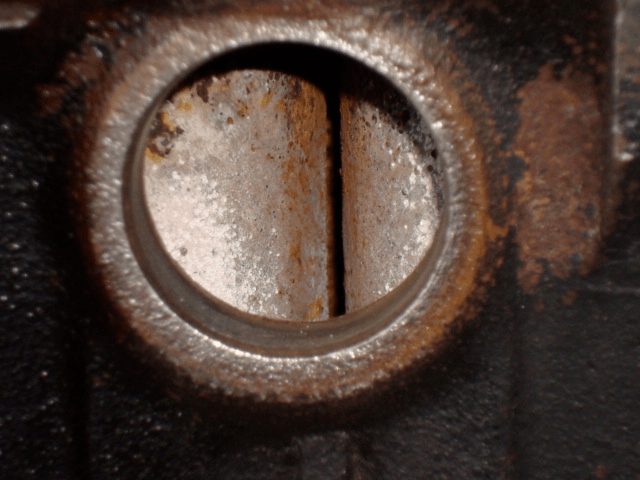

                                Frost plugs were all removed and the block was thoroughly cleaned inside....found a lot of rusty build-up....a lot of crap came out. new brass frost plugs inserted afterwards....

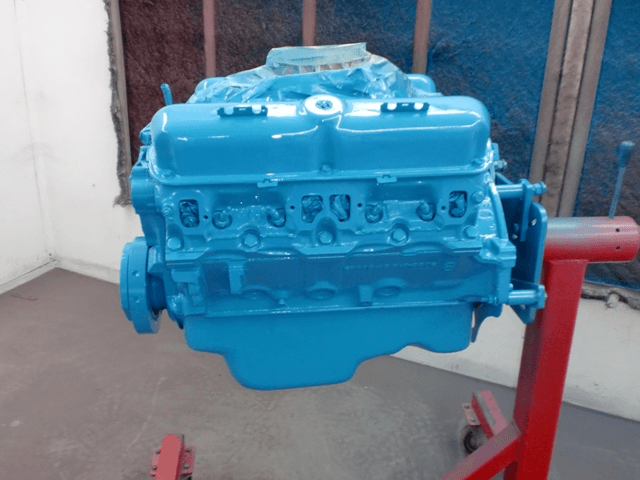

                                A light sand blasting on the block, some scrubbing and then a coat of fresh Petty Blue paint...

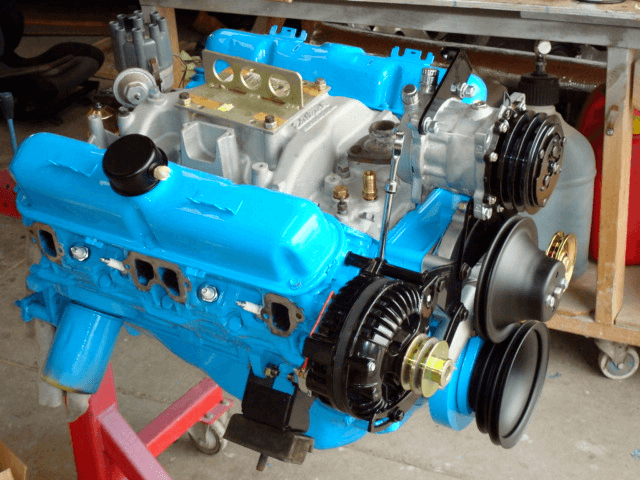

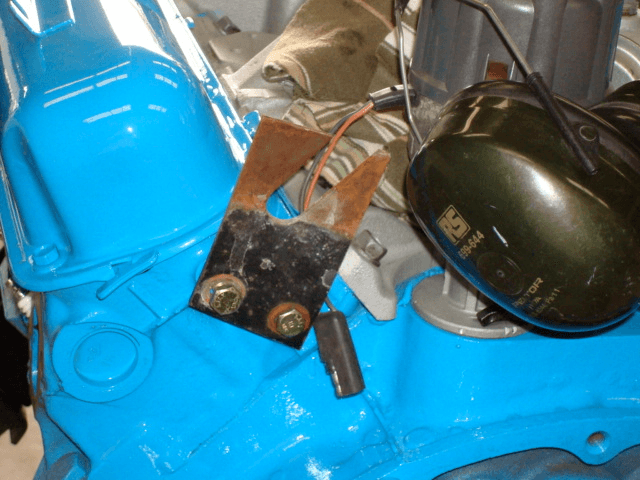

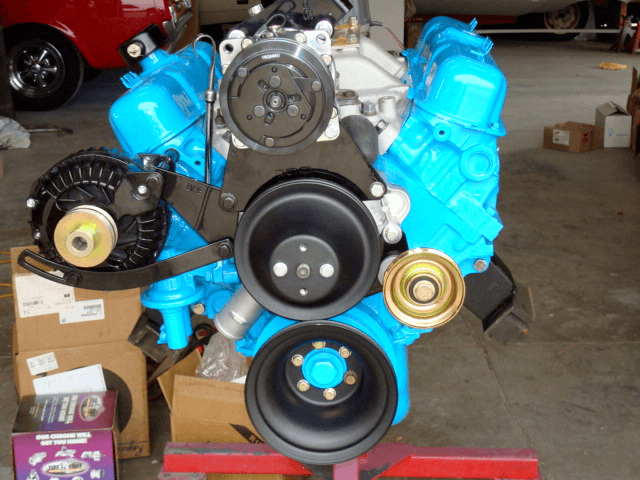

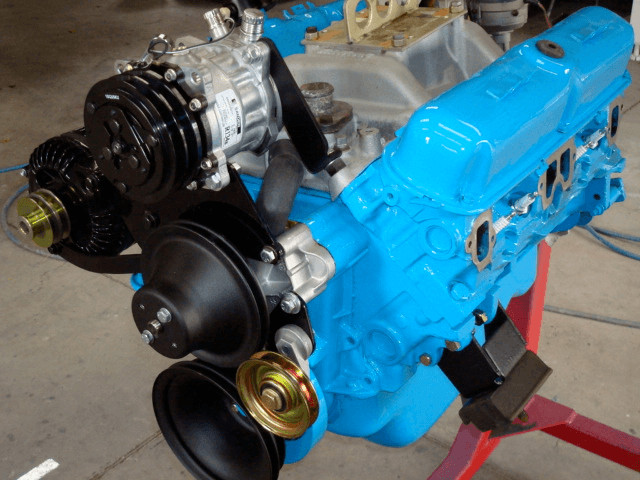

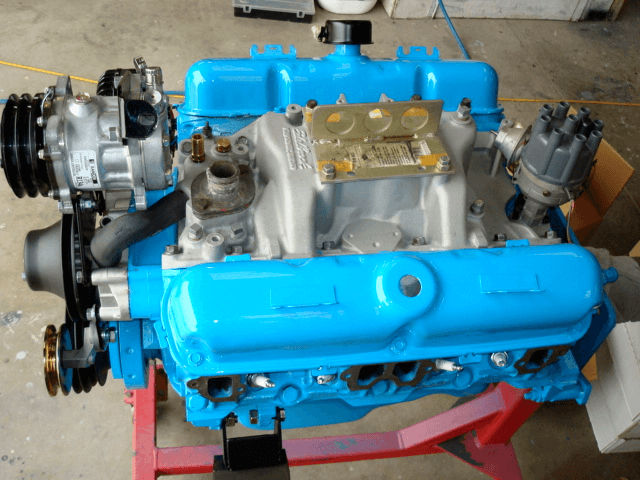

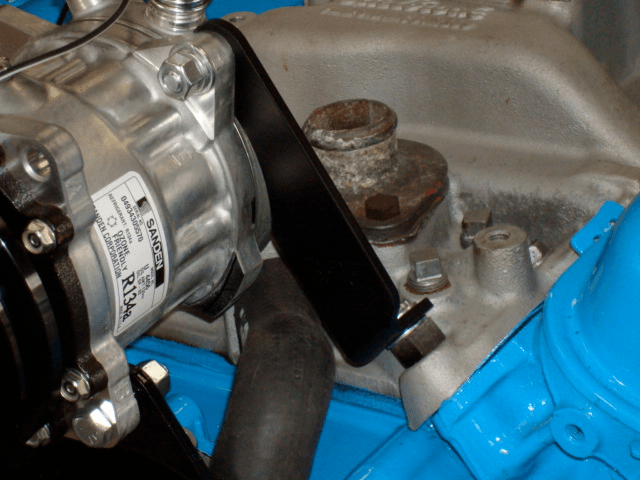

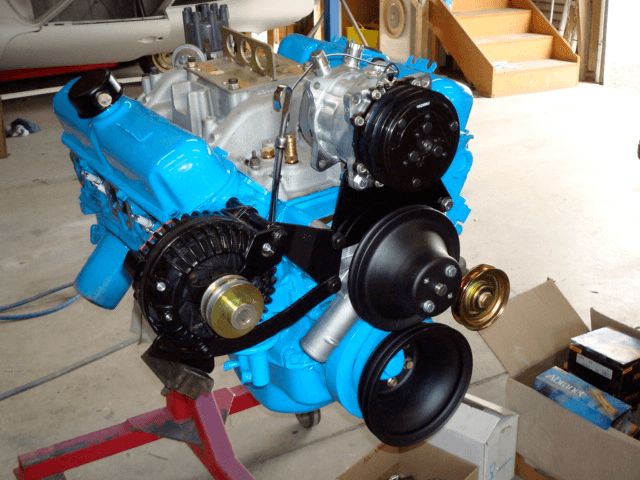

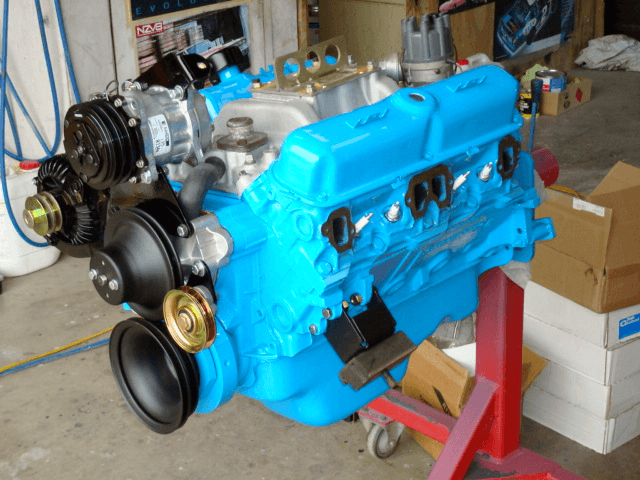

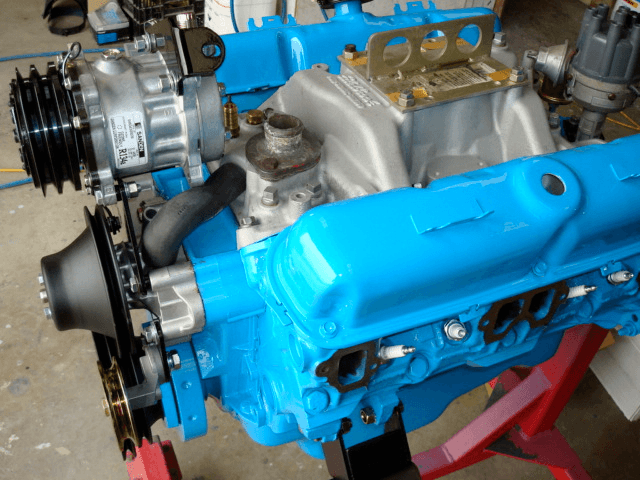

                                Engine dress-up time begins....a new kit of pulleys, brackets and A/C unit from Bouchillon Performance Engineering in SC....

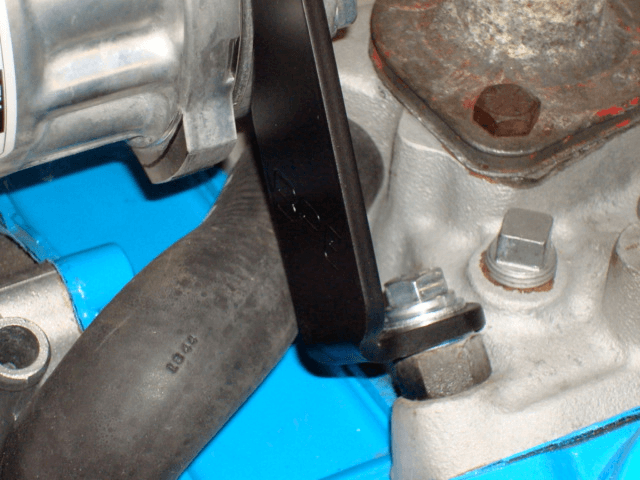

                                We had to cut one mounting leg off the A/C pump to clear the bypass hose....nobody mentioned that little trick before we started....

                                • Like Like x 5
                                • kiwigtx

                                  kiwigtxInternational Mod Staff Member

                                  Messages:
                                  506
                                  Likes Received:
                                  408
                                  Joined:
                                  Jun 16, 2011
                                  Location:
                                  Auckland
                                  Solid one piece kick-down rod was kept for now....were not really sure about what else to do at the time...





                                  • Like Like x 4
                                  • kiwigtx

                                    kiwigtxInternational Mod Staff Member

                                    Messages:
                                    506
                                    Likes Received:
                                    408
                                    Joined:
                                    Jun 16, 2011
                                    Location:
                                    Auckland

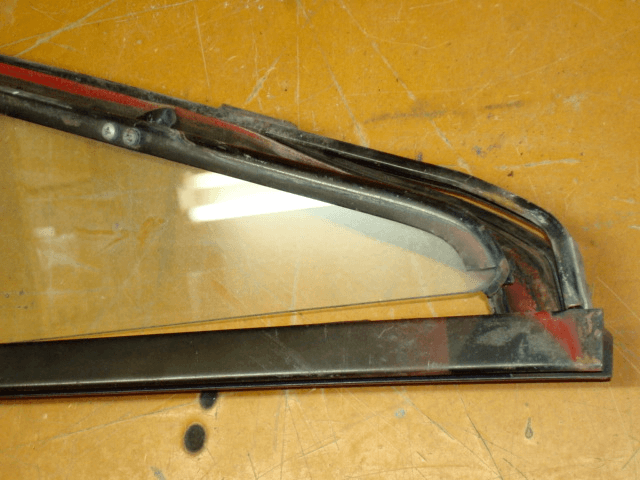

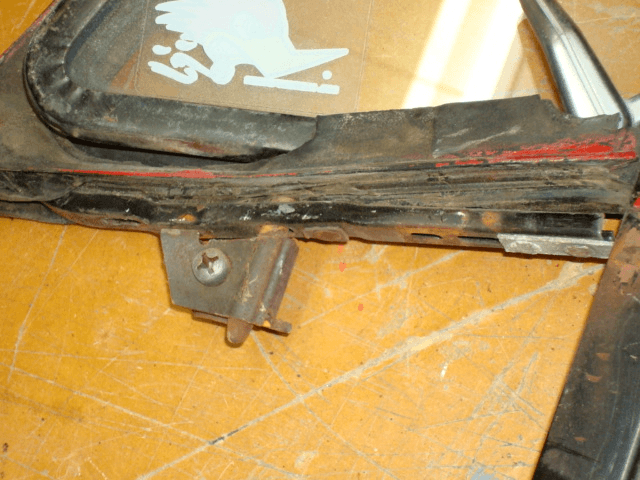

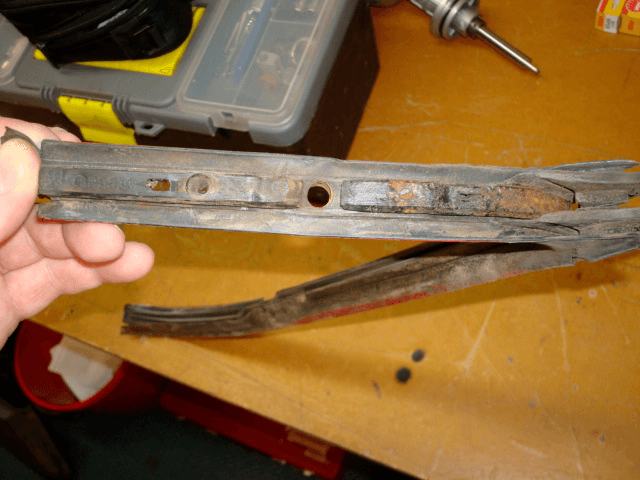

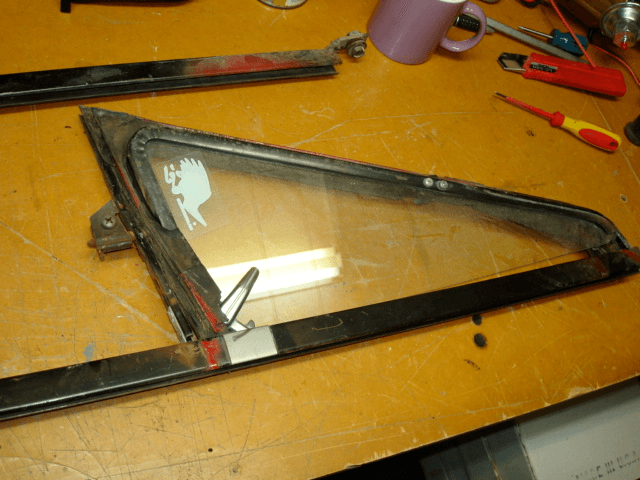

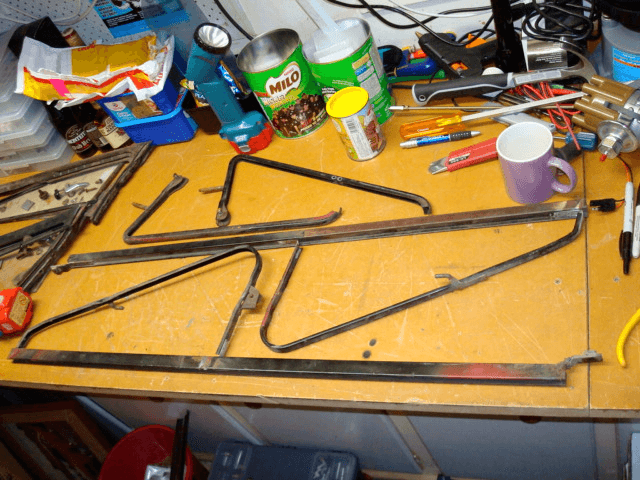

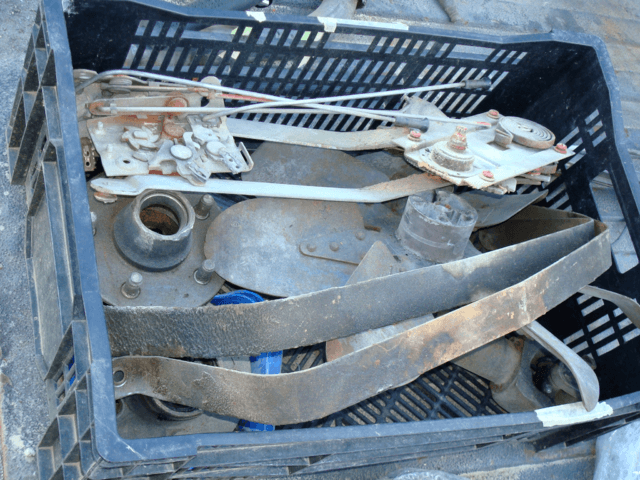

                                    Quarter windows were removed for inspection. I had ordered a set of what was advertised as direct reproduction rubber seals for the windows and whiskers for the doors....but none of this stuff was even remotely close....in fact it was pretty much junk. I was able to reuse the whiskers for the doors, but had to re-drill the fixing holes. Until a genuine Vendor steps up and makes these window rubbers correctly, I am satisfied enough to have the windows Urethaned in place, and unable to open them.





                                    • Like Like x 3
                                    • kiwigtx

                                      kiwigtxInternational Mod Staff Member

                                      Messages:
                                      506
                                      Likes Received:
                                      408
                                      Joined:
                                      Jun 16, 2011
                                      Location:
                                      Auckland

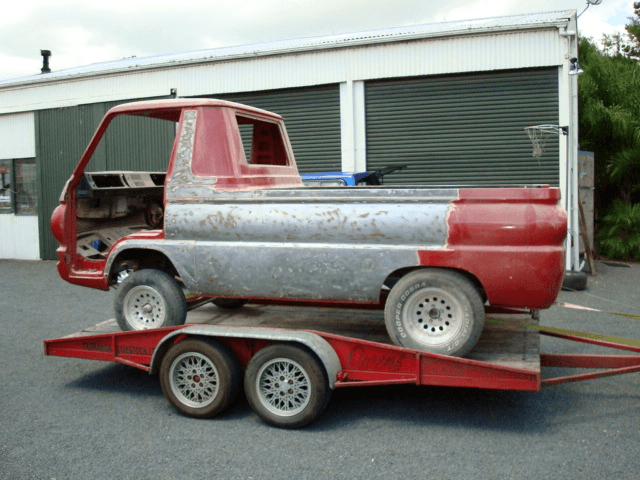

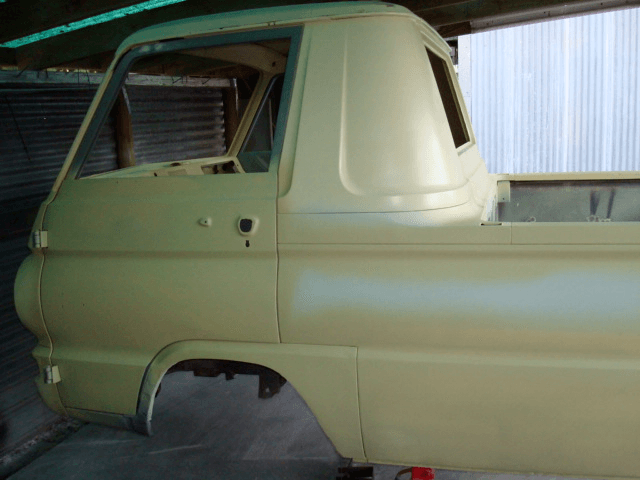

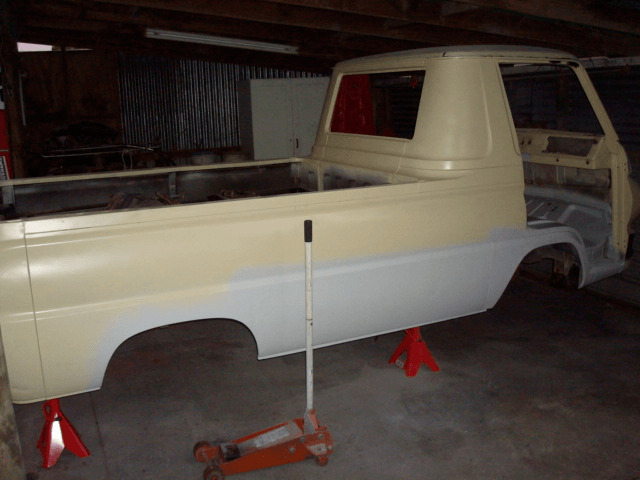

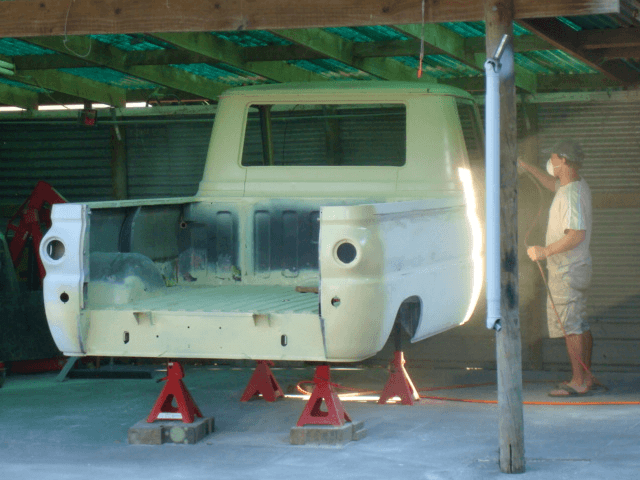

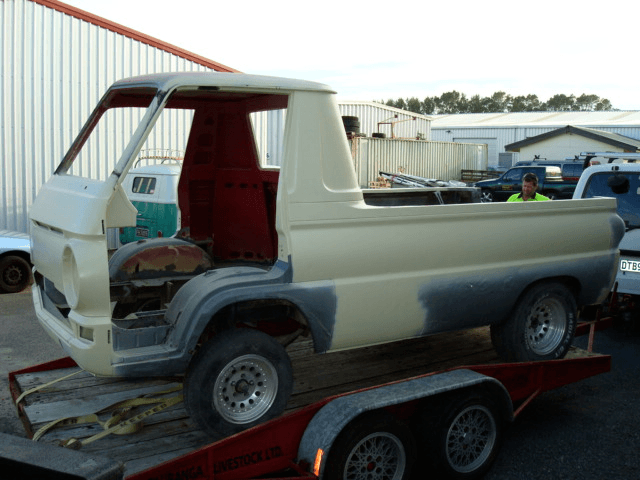

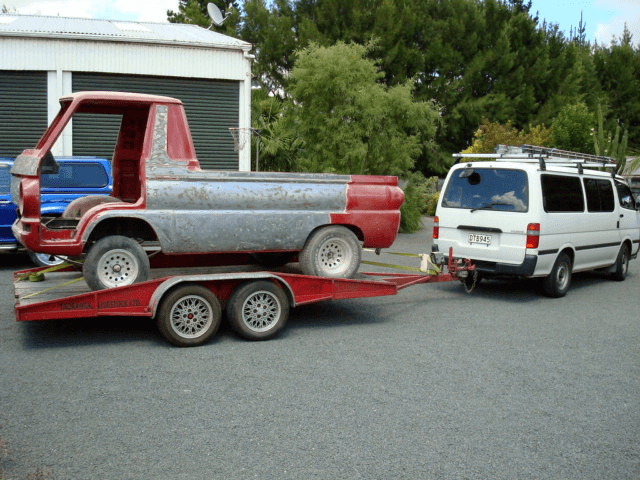

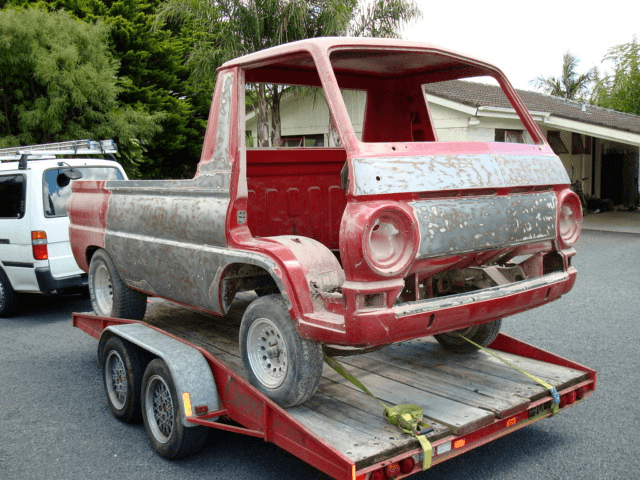

                                      Outer bodywork stripping was well under way at this time, and a sandblaster had been booked to clean up the worst and most difficult areas. When he became available, the truck had to go....





                                      And after a week with the Sandblaster....it was back for a quick coat of etch primer....and to the Panelbeaters for another two weeks....




                                      • Like Like x 5
                                      • kiwigtx

                                        kiwigtxInternational Mod Staff Member

                                        Messages:
                                        506
                                        Likes Received:
                                        408
                                        Joined:
                                        Jun 16, 2011
                                        Location:
                                        Auckland

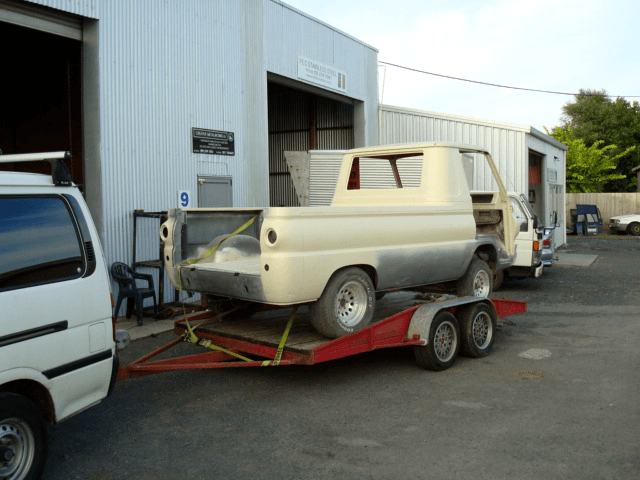

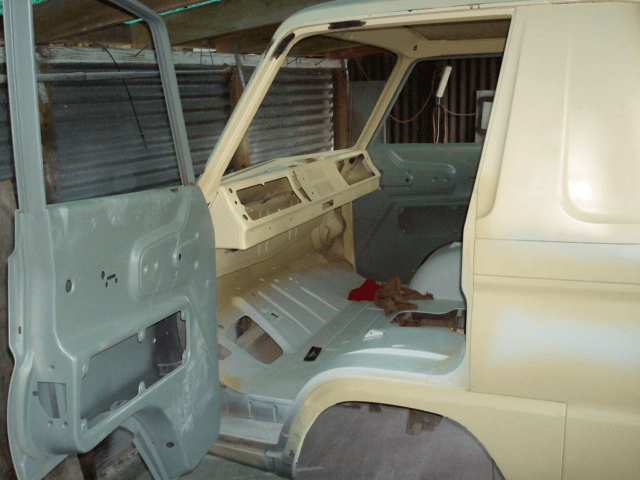

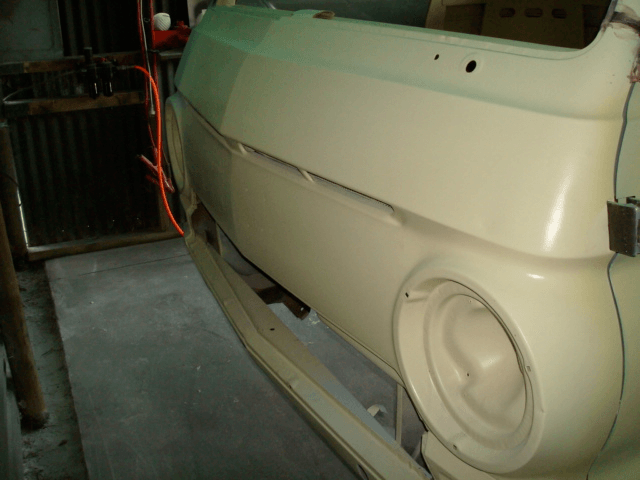

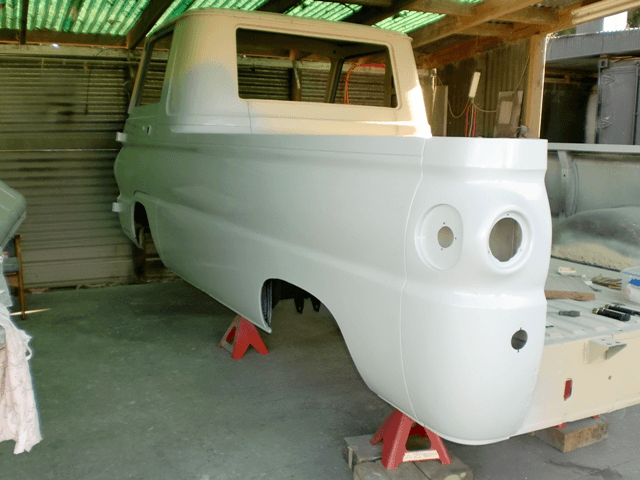

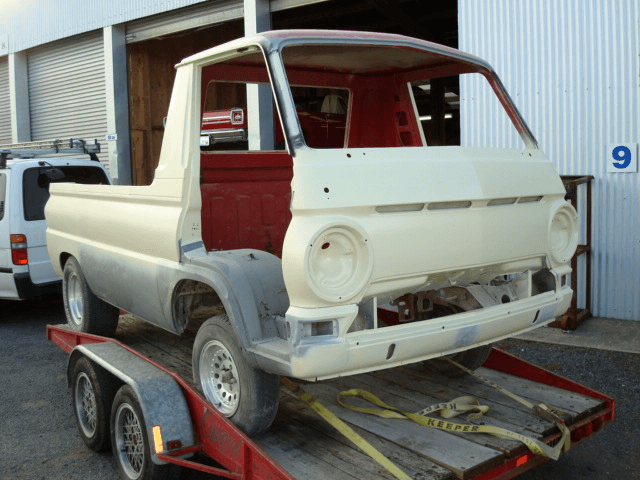

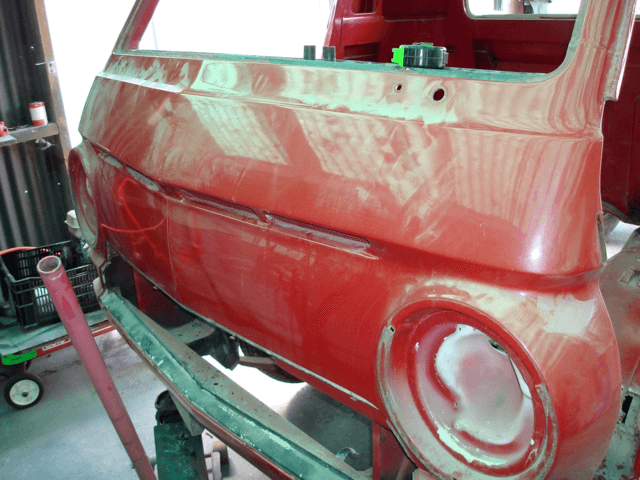

                                        Back from the Panel shop, and straight into prepping the body work for paint...

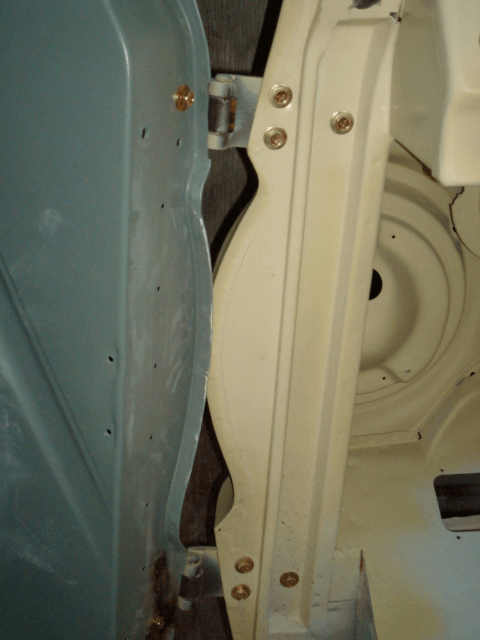

                                        Trial fitting doors, had the hinges all re-pinned...

                                        Slotted a hole for the A/C controls....

                                        • Like Like x 4
                                        • kiwigtx

                                          kiwigtxInternational Mod Staff Member

                                          Messages:
                                          506
                                          Likes Received:
                                          408
                                          Joined:
                                          Jun 16, 2011
                                          Location:
                                          Auckland

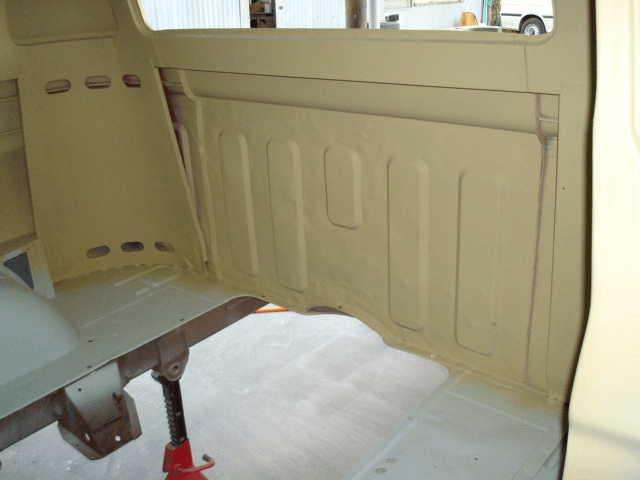

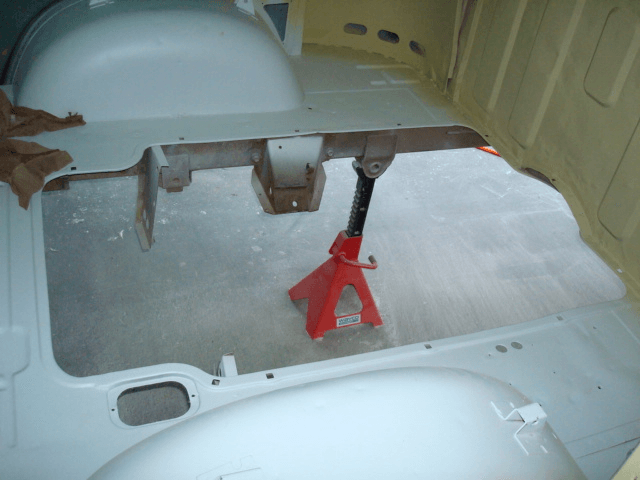

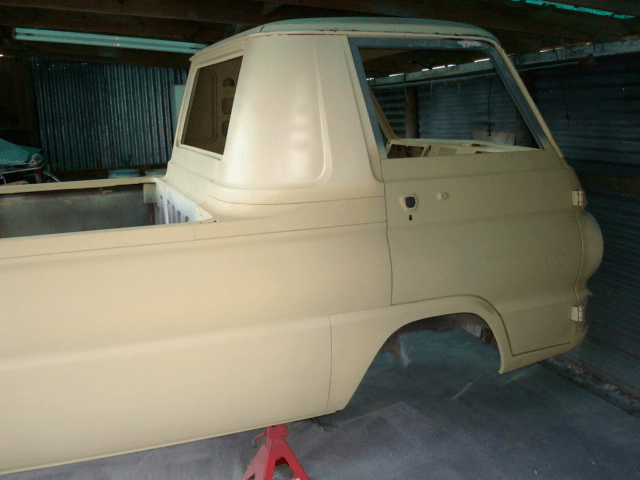

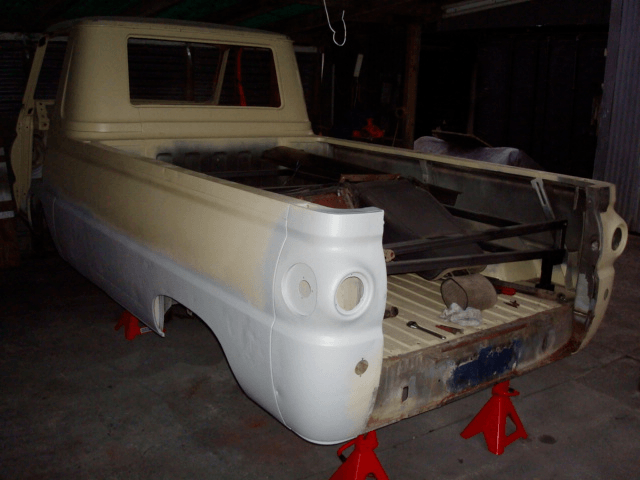

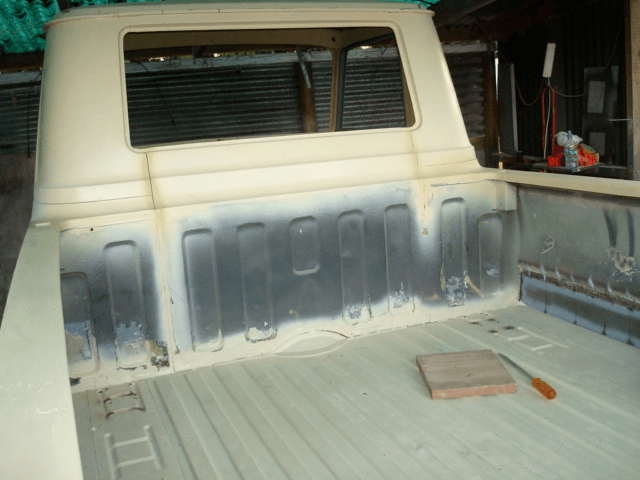

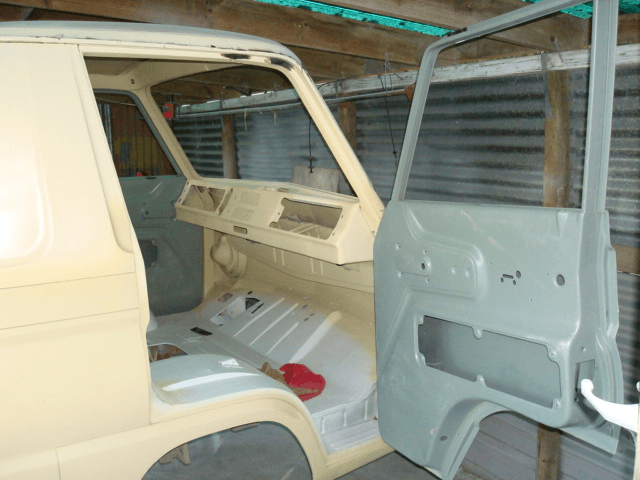

                                          Inside the cab looked a lot better in one hue ....minor panel dents will be eventually covered with carpet...

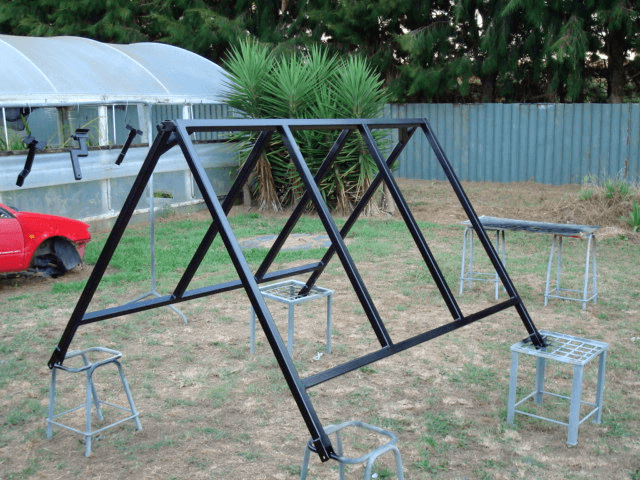

                                          Newly designed and built frame for holding the advertising sign was prepped and painted....

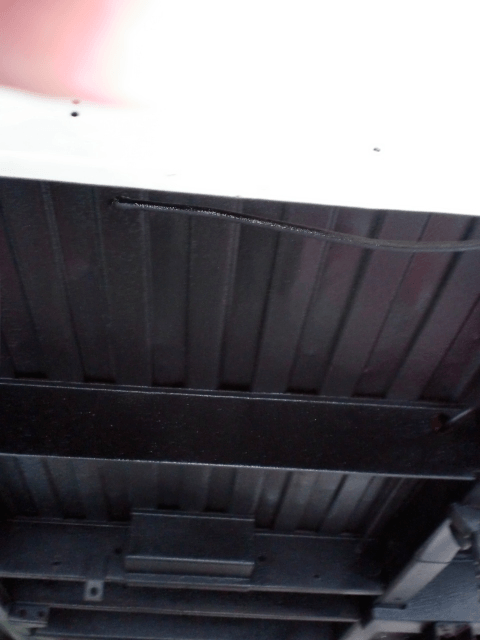

                                          Underbody was shot with Wurth Underbody Sealer....


                                          A very messy job. :yuck:

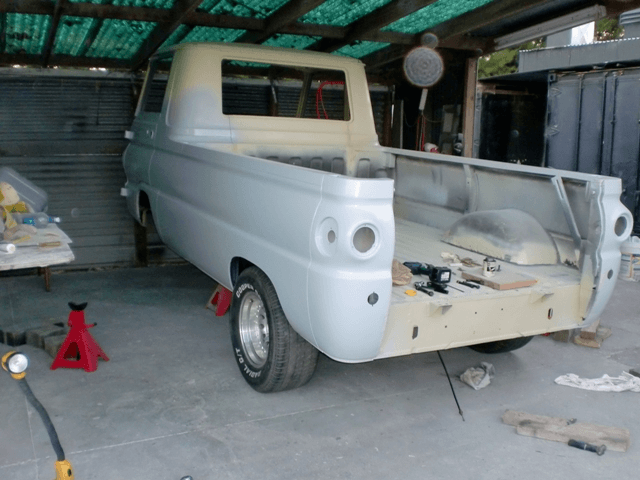

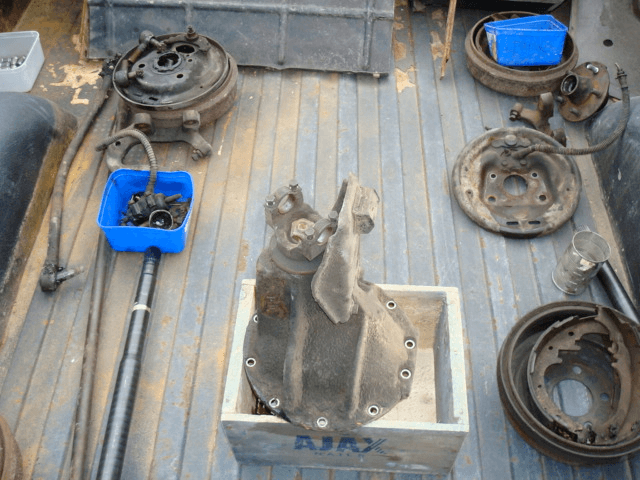

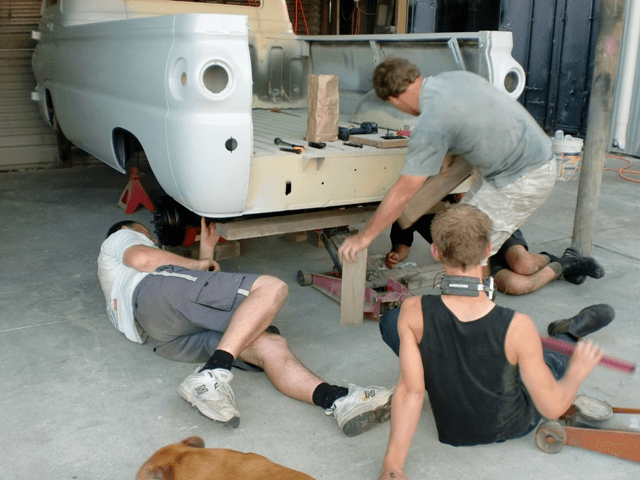

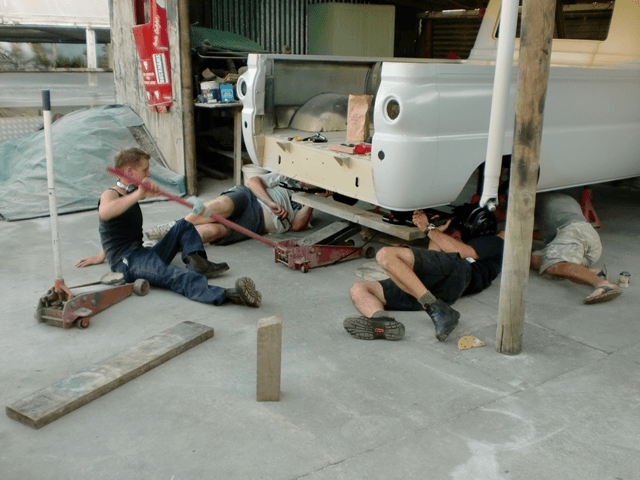

                                          A group effort to get the diff and rear end re-installed....



                                          • Like Like x 6
