Measurements for hole in floor for 833OD shifter

[volaredon]

This for 85 D150. Taking an auto trans out.



[volaredon]

Nobody?



[paul massaro]

do you have that fiber glass shifter hump ? the shifter mounts on the b mount at the front of the tailstock . just install it and start with a small hole and enlarge as needed .



[7mopar]

That fiber glass shifter hump was not meant to be installed on an automatic floor tunnel.
The manual tunnel is much wider.
I could get you the dimensions from the door & the back of the cab. But your going to have to wait a few days.



[volaredon]

The wide tunnel is not needed for an 833od
Just for a np435.



[7mopar]

Why does may 82 cab then have a wide tunnel? Miser /6 with 833od



[7mopar]

Leaves plenty of room for the 518 to fit into when the time comes.



[85crewcabbie]

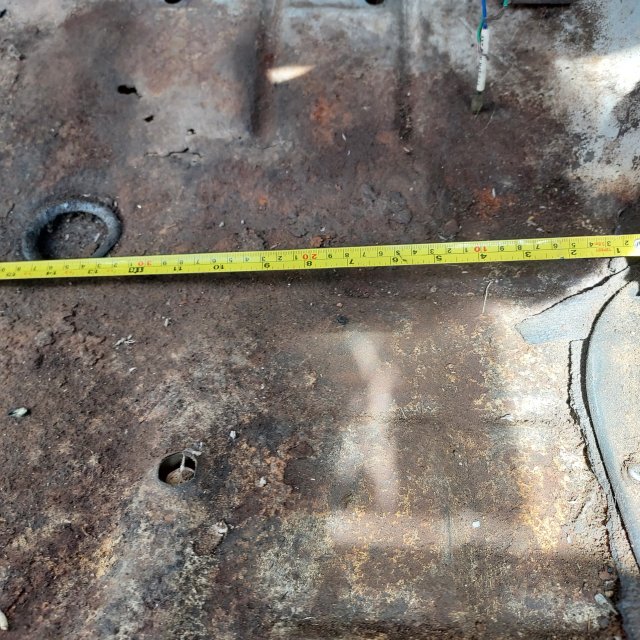

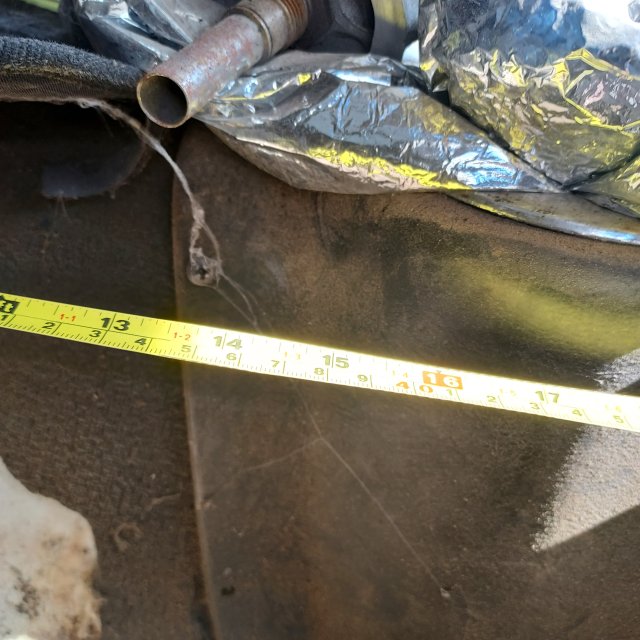

Not sure I agree that the add on fiberglass A833 shifter hump would conform to smaller automatic 2wd floor hump. But here are a couple pics with a tape. The front to back dim was with the tapes end against the vertical surface where the gas pedal pivot mounts. These dims would only apply if you are using the unique truck/van shifter mount and not a passenger car style shifter mount.



[volaredon]

This trans and shifter came from an 81 d150 so I think I'm alright there.



[85crewcabbie]

Willing to take additional pics for you if needed. I know I'm not the best photographer.



[7mopar]

This trans and shifter came from an 81 d150 so I think I'm alright there.

Guess we will find out.
