How to Install Auxiliary Reverse Lights

Discussion in 'Appearance & Dress-Up' started by Joeychgo, Mar 25, 2017.

  1. Joeychgo

    JoeychgoAdministrator Staff Member

    Messages:
    624
    Likes Received:
    62
    Joined:
    May 19, 2011
    Location:
    Chicago, Illinois


    Want Bright Back Up Lights? Rig up your auxiliary lights to come on when you go in reverse.

    The video shows you the step by step process of how the author wired the truck with a relay so when he puts the truck in reverse, the LED reverse lights come on with the stock reverse lights.

    Where to get the lights used: Amazon.com: Baja Designs 50-0003 LED Driving Light: Automotive
    Where to get the relay used: Amazon.com: Absolute USA 2 In-line ATC Fuse Holder, 2 Relay RLS125 12 VCD Automotive Relay SPDT 30/40A and 2 SRS105 12 VDC 5-Pin Relay Socket: Car Electronics
    Automatic Wire Stripper: Neiko 01924A Ultimate Self-Adjusting Wire and Cable Stripper - Wire Stripping Tool - Amazon.com

    Last edited: Mar 25, 2017
    • Like Like x 1
    • 65 sporty

      65 sportyWell-Known Member

      Messages:
      872
      Likes Received:
      332
      Joined:
      Aug 8, 2015
      Location:
      Marlette, Mi
      I did something similar for my backup lights when plowing, They are mounted on a bar that sits in the bed pockets I have a relay mounted also. I ran the wiring down to the trailer connector to pick up power, ground and backup input for the relay. I used a 7 pin connector so I can remove them when I am not using them.

    • 7mopar

      7moparWell-Known Member

      Messages:
      1,015
      Likes Received:
      177
      Joined:
      Dec 21, 2013
      Location:
      Kingsville, MO
      The auxiliary on the 7 pin would work quite well unless it needs to be utilized for charging a trailor battery.

    • 65 sporty

      65 sportyWell-Known Member

      Messages:
      872
      Likes Received:
      332
      Joined:
      Aug 8, 2015
      Location:
      Marlette, Mi
      It does work great I only use it for plowing and remove it after I am done. I never use it when a trailer is connected

    • 7mopar

      7moparWell-Known Member

      Messages:
      1,015
      Likes Received:
      177
      Joined:
      Dec 21, 2013
      Location:
      Kingsville, MO
      I have been accumulating lights for a headache light bar for the flat bed. All back facing, turns, brake and yes backup bed lights.

      • Like Like x 1
      • lou3500

        lou3500Redneck Garage

        Messages:
        221
        Likes Received:
        23
        Joined:
        Jun 15, 2011
        Location:
        Palm Harbor Fla.

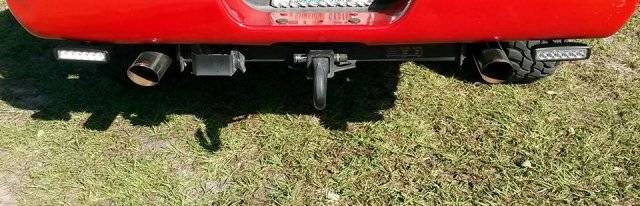

        Mounted 6 inch lights on the rear bumper of my 01 Ram Sport .


        • Like Like x 1
