1985 Dodge D150 Heater Vacuum Lines

jw841315

New Member
Joined
Mar 22, 2021
Messages
2
Reaction score
0
Location
Mandeville, LA
I'm looking for a diagram to be able to put my vacuum lines back together for my heater controls. The previous owner pulled the vacuum lines apart at the connector from the control panel and left the other ends loose without any way of telling which tube goes where. He stated there were issues with the A/C compressor and this was his fix. I'd appreciate if anyone has any information that would help me out here. I'd like to get things connected the way they were meant to be so I can determine if there really is another issue with the system. Thanks.


65 sporty

Well-Known Member
Joined
Aug 8, 2015
Messages
2,328
Reaction score
1,750
Location
Kingston, Mi

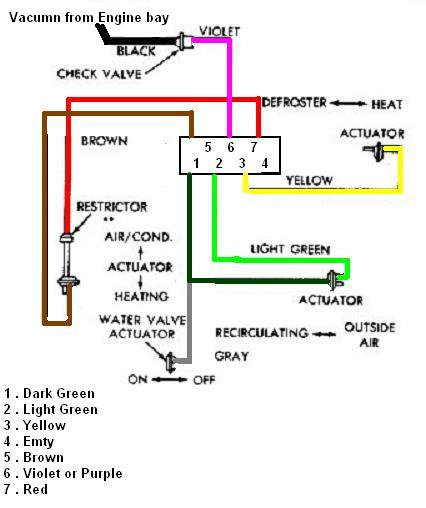

I found this



I also found this



jw841315

New Member
Joined
Mar 22, 2021
Messages
2
Reaction score
0
Location
Mandeville, LA
Fantastic! Thanks 65 Sporty, this is what I needed. I appreciate your help! This is the first step in identifying any other problems I may be coming back to this forum with on this truck.
