Diagram of wiring harness in eng. bay

Discussion in 'Dodge Ram' started by moparsteve636, May 19, 2019.

  1. moparsteve636

    moparsteve636Active Member

    Messages:
    46
    Likes Received:
    0
    Joined:
    Nov 6, 2012
    Location:
    Missouri
    Need a wiring harness diagram of under hood 83 D series p/u !Trying to locate the wiring for the blower motor! Some one cut the wires! Can't find the main wires for it! It has black and orange wires on the motor! Found a connection same colors but it's not hot!

  2. 7mopar

    7moparWell-Known Member

    Messages:
    1,598
    Likes Received:
    692
    Joined:
    Dec 21, 2013
    Location:
    Kingsville, MO
    A/C or plan heater. Hot (orange wire) comes of the rheostat on top the heater box behind the glove box. Do not remember where the other wire originates. They both pass threw the same fire wall grommet. Will get you a picture and post it later. 82 & 83 were pretty close to the same. Mine is an 82 with A/C. If I remember right the blower motor doesn't care which wire goes where.

  3. moparsteve636

    moparsteve636Active Member

    Messages:
    46
    Likes Received:
    0
    Joined:
    Nov 6, 2012
    Location:
    Missouri
    It's an 83 w/o air! Thanks for the info Does the wiring go thru the bulk head?

  4. 7mopar

    7moparWell-Known Member

    Messages:
    1,598
    Likes Received:
    692
    Joined:
    Dec 21, 2013
    Location:
    Kingsville, MO
    No not threw the bulk head.

  5. 7mopar

    7moparWell-Known Member

    Messages:
    1,598
    Likes Received:
    692
    Joined:
    Dec 21, 2013
    Location:
    Kingsville, MO

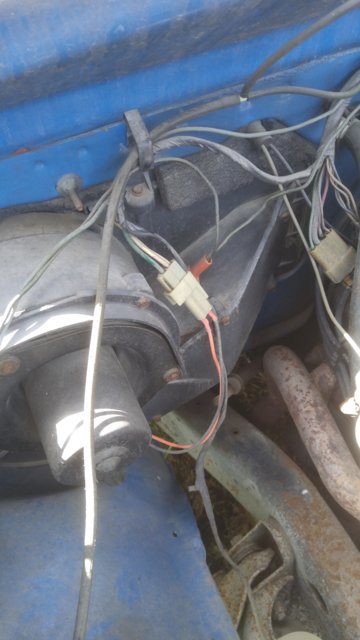

    Well I goofed on that one yes they go threw the bulk head and come out of the engine harness with the washer bottle wires. Photo of the wire connector. Not sure what this harness is out off. Its either 83 or 84. The 82 never had the disconnect for the engine wiring. This one does.

  6. 7mopar

    7moparWell-Known Member

    Messages:
    1,598
    Likes Received:
    692
    Joined:
    Dec 21, 2013
    Location:
    Kingsville, MO
    20190519_164201.jpg photo would not load on 2 g connection. Worked just great at 4g

  7. moparsteve636

    moparsteve636Active Member

    Messages:
    46
    Likes Received:
    0
    Joined:
    Nov 6, 2012
    Location:
    Missouri
    Thanks man! That connection is still there! Have no idea why some one cut the wires! I checked the switch and fuses so nothing was out of the ordinary No hot spots! I owned this trk. many years ago! sold it when I got a 99 cummins powered Ram! It has been really abused!Bought it back a couple of months ago just for sentimental reasons I guess! Got it originally in 89 and hauled cars around the country for a couple of years! Being a paid tourist LOL BTW do you happen to have a cowl vent for it? Some reason
    it's missing! Along with the Tilt column Infinity radio I have replaced the column no radio yet,I have 3 systems and none work anymore. Again thanks! Steve

  8. 7mopar

    7moparWell-Known Member

    Messages:
    1,598
    Likes Received:
    692
    Joined:
    Dec 21, 2013
    Location:
    Kingsville, MO
    I have a few colors red and red. May even have a white one but dont remember. No radio.

  9. moparsteve636

    moparsteve636Active Member

    Messages:
    46
    Likes Received:
    0
    Joined:
    Nov 6, 2012
    Location:
    Missouri
    Red will Work Seeing as my trk. is red! How much for a Red one zip code is 63386 Thanks!

  10. 7mopar

    7moparWell-Known Member

    Messages:
    1,598
    Likes Received:
    692
    Joined:
    Dec 21, 2013
    Location:
    Kingsville, MO
    I will be in the St Louis area later this week and can throw it in. Have no idea what these are going for these day. Send me a PM and let me know what its worth to you.

    • Like Like x 1
    • moparsteve636

      moparsteve636Active Member

      Messages:
      46
      Likes Received:
      0
      Joined:
      Nov 6, 2012
      Location:
      Missouri
      Boy I don't know! Would you take $35.00 for it?

    • 7mopar

      7moparWell-Known Member

      Messages:
      1,598
      Likes Received:
      692
      Joined:
      Dec 21, 2013
      Location:
      Kingsville, MO
      Thats fine. Missed you this trip. My phone gets no reception in Sikeston. If you can wait a few week. I can drop it off next trip. Will pm my e-mail later.

    • moparsteve636

      moparsteve636Active Member

      Messages:
      46
      Likes Received:
      0
      Joined:
      Nov 6, 2012
      Location:
      Missouri
      I'll be out of town next week end! WIll you be around beginning of the week?

    • 7mopar

      7moparWell-Known Member

      Messages:
      1,598
      Likes Received:
      692
      Joined:
      Dec 21, 2013
      Location:
      Kingsville, MO
      May be a couple of weeks. Have not worked the schedule out yet for the next trip.

    • moparsteve636

      moparsteve636Active Member

      Messages:
      46
      Likes Received:
      0
      Joined:
      Nov 6, 2012
      Location:
      Missouri
      If you'd like give me a call 314-494-7903 when you get this direction!
